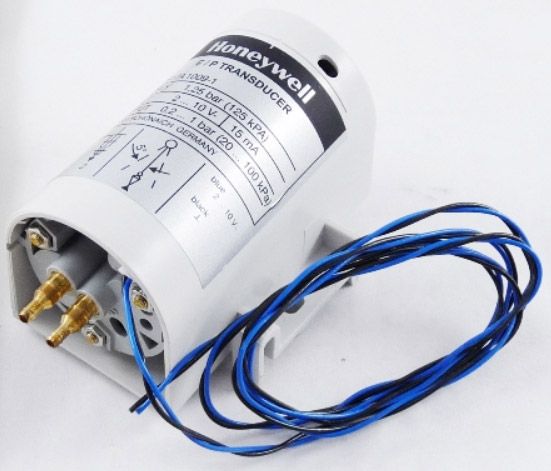

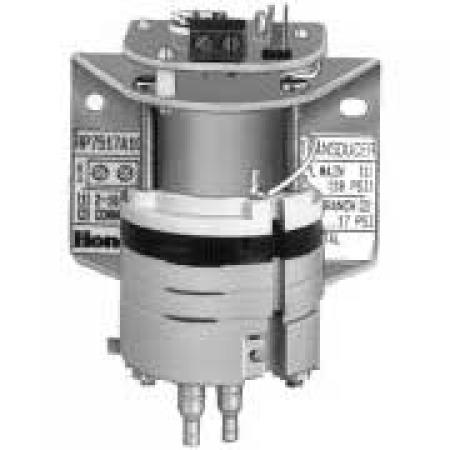

Honeywell RP7517A1009 Electronic Powered Pneumatic Transducer

Product Description

The Honeywell RP7517A1009 Electronic Pneumatic Transducer is a high-performance device designed to convert electrical signals into proportional pneumatic outputs. This transducer is ideally suited for industrial applications where precise control of pneumatic systems is required.

• Factory calibrated for immediate installation and use.
• Dual barb fittings ensure secure tubing connections.
• Robust construction designed for demanding environments.

Product Highlights

This transducer excels in environments requiring high accuracy and reliability in electronic to pneumatic signal conversion. With a 0-18 psi input and 3-15 psi output, it supports a wide range of control applications.

Product Information

Standard Information

• Brand: Honeywell
• Model: RP7517A
• Application: Industrial, HVAC, Automation
• Inputs/Outputs: 2 to 10 Vdc input, 3 to 15 psi output

Technical Specifications

• Operating Temperature: Up to 131 degrees Fahrenheit
• Humidity Range: 5% to 95% relative humidity
• Weight: 0.50 lbs
• Connection Type: Dual barb fittings for 1/4 in. or 5/32 in. O.D. plastic tubing
• Dimensions: 3.98 x 2.6 x 2.44 inches
• Power: Powered by control signal
