E. James 5L650 - Gates 3650 Truflex Belt

Product Description

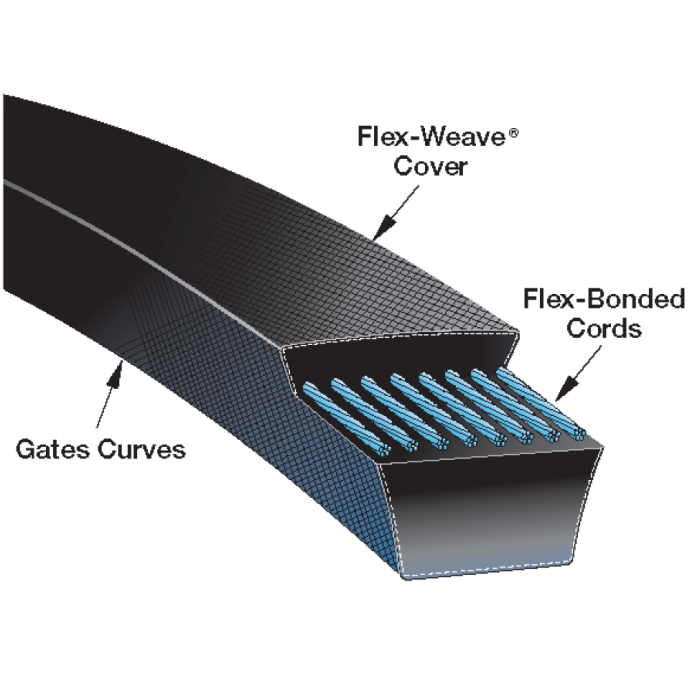

The E. James 5L650 is a Gates 3650 Truflex belt, ideal for industrial and light-duty applications using fractional horsepower motors. This belt features flex-bonded cords that help distribute load and absorb bending stress efficiently. Gates Curves support the cord, enhancing sheave-groove contact for consistent loading and extended wear. Its Flex-Weave cover offers protection against oil, dirt, and heat while meeting RMA standards for oil and heat resistance, along with static conductivity.

With a thin profile, it is designed for small-diameter sheaves and has a low cord positioning that enhances its performance for light-duty drives and backside idler applications.

• Offers length stability, reducing frequent adjustments.
• Suitable for applications with backside idlers.
• Meets RMA standards for oil and heat resistance, static conductivity.

Product Highlights

This belt is durable and efficient for light-duty and industrial settings.

Product Information

Standard Information

• Manufacturer: Gates
• Industry Number: 5L650

Technical Specifications

• Gates Product Number: 8400-3650
• Outside Length: 65 inches
• Effective Length: 64.94 inches
• Top Belt Width per Strand: 0.66 inches
• Nominal Thickness: 0.375 inches
• Weight: 0.55 pounds
