E. James 3L520 FHP V-Belt

Product Description

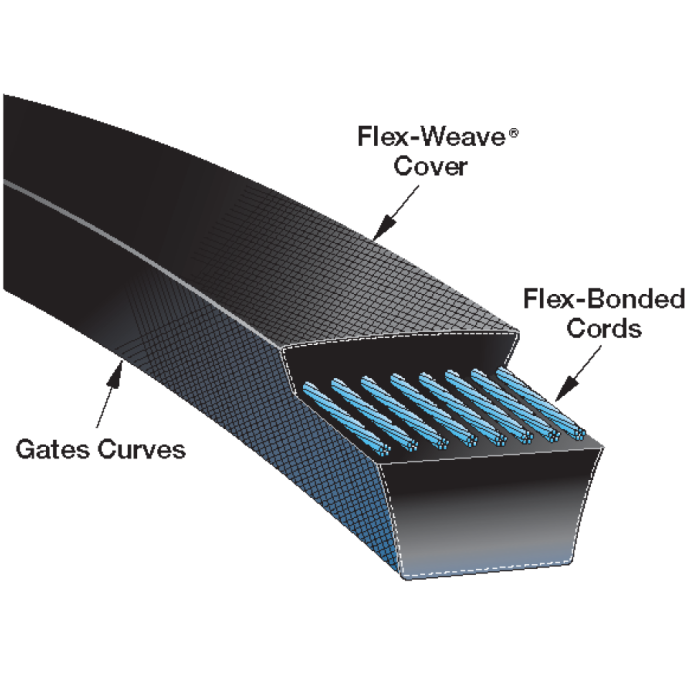

The E. James 3L520 FHP V-Belt is manufactured by Gates. This V-belt is designed for industrial and light-duty applications, particularly those involving fractional horsepower motors and backside idlers. The construction features flex-bonded cords that help distribute load evenly and absorb bending stress effectively.

• Designed for small-diameter sheaves with a thin profile.
• Resistant to oil, dirt, and heat for durable performance.
• Meets RMA standards for heat resistance and static conductivity.

Product Highlights

This V-belt provides length stability, reducing the need for frequent adjustments. Its cover is designed to withstand adverse conditions ensuring reliable operation for applicable uses.

Product Information

Standard Information

• Manufacturer: Gates
• Part Number: 3L520

Technical Specifications

• Outside Length: 52 inches
• Top Width: 0.375 inches
• Nominal Thickness: 0.22 inches
• Effective Length: 51.68 inches
• Industry Number: 3L520
• Gates Product Number: 8400-1520
• Package Dimensions: 18.3 x 8.9 x 2.3 cm
• Item Package Quantity: 1
