E. James 3L490 - Gates 1490 TruFlex Belt

Product Description

The E. James 3L490 is a Gates 1490 TruFlex belt. This belt is suited for industrial and light-duty applications, including those that utilize fractional horsepower motors and backside idlers.

• Length stability minimizes the need for adjustments.
• The flex-weave cover protects against oil, dirt, and heat.
• Meets RMA standards for oil, heat resistance, and static conductivity.

Product Highlights

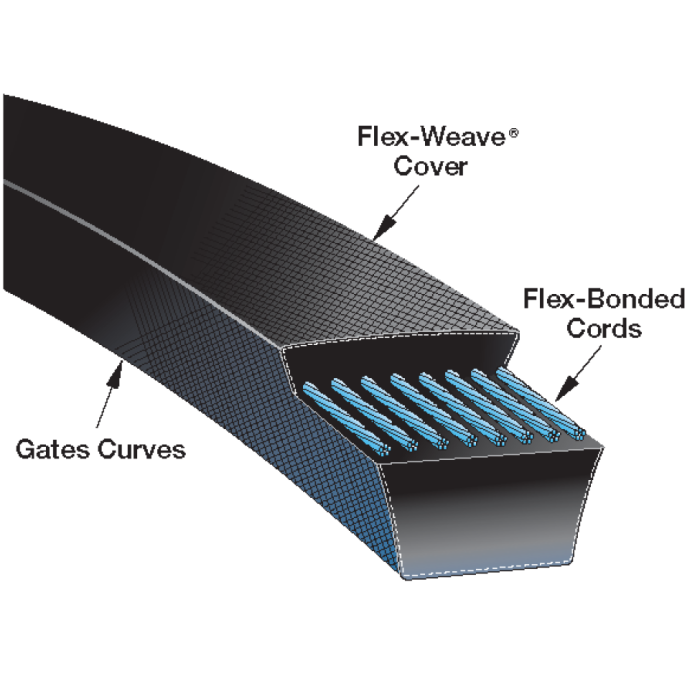

The TruFlex belt features flex-bonded cords for load distribution and bending stress absorption. Its design includes Gates Curves for improved cord support and contact.

Product Information

Standard Information

• Manufacturer: Gates
• Industry Number: 3L490

Technical Specifications

• Gates Product Number: 8400-1490
• Outside Length: 49 inches
• Effective Belt Length: 48.68 inches
• Actual O.C. Length: 49 inches
• Top Belt Width per Strand: 0.375 inches
• Nominal Thickness: 0.22 inches
