E. James 3L420 FHP V-Belt

Product Description

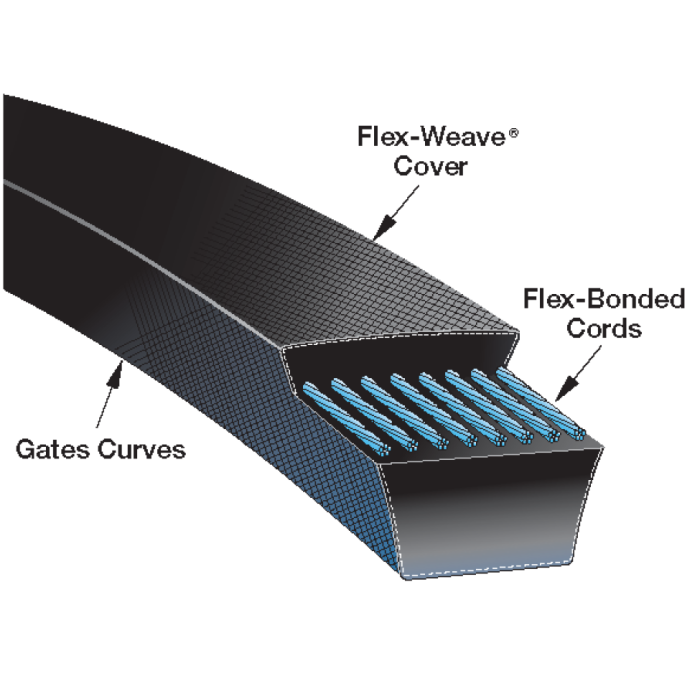

The E. James 3L420 is a V-belt suitable for fractional horsepower motors and light-duty industrial purposes. This belt features a top width of three-eighths inch and a thickness of seven thirty-seconds inch. It is designed to withstand oil and heat while also dissipating static electricity. It meets RMA standard IP 23 criteria. Flex-bonded cords in the structure help distribute loads and manage bending stress effectively. The flex-weave cover safeguards the inner components from oil, dirt, and heat.

• Oil and heat-resistant design
• Static dissipating feature
• Complies with RMA standard IP 23

Product Highlights

This V-belt is engineered for durability and performance in various applications, ensuring reliable operation in demanding conditions.

Product Information

Standard Information

• Manufacturer: Gates
• MPN: 3L420

Technical Specifications

• Industry Number: 3L420
• Gates Product Number: 8400-1420
• Top Width: 0.375 inches
• Thickness: 0.22 inches
• Length: 42 inches
• Outside Length: 42 inches
• Effective Length: 41.68 inches
• Approximate Weight: 0.14 lb
