E-Flex 21103 LA 11 Gray 1/2in. 500F

Product Description

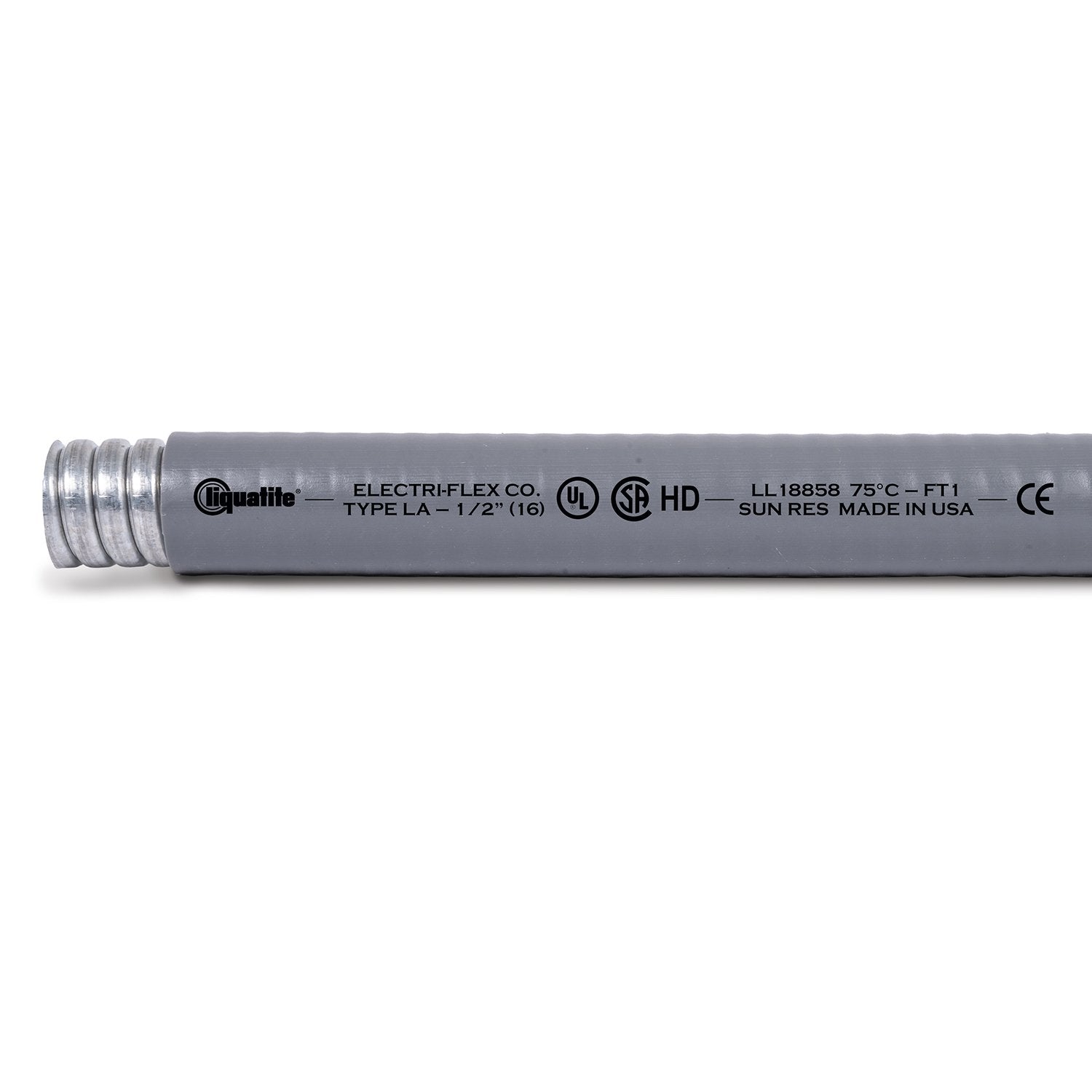

The E-FLEX 21103 LA 11 GRAY 1/2IN. 500FT. REEL is a flexible steel conduit listed by Underwriters Laboratories Inc. and certified by Canadian Standards Association for “Heavy-Duty” applications. It offers protection against wet, oily conditions and is permitted for use in exposed or concealed locations.

• Liquidtight jacket is made of flexible PVC
• For use in exposed and concealed locations, electric signs and outline lighting over 1000 VAC, marinas and boatyards, elevators and hoistways, fire pumps, pools and fountains
• Resistant to oils and mild acids

Product Highlights

This flexible steel conduit is ideal for heavy-duty applications, providing protection in various environments and is suitable for exposed or concealed locations.

Product Information

Standard Information

• Brand: E-FLEX
• Manufacturer Part Number: 21103
• Country of Origin: US

Technical Specifications

• Weight: 32lb
• Height: 24mm
• Width: 24mm
• Length: 19.5mm
• Brand: Electri-Flex
• Category: Flexible Metallic Conduit
• Bend Radius: 3 IN
• Type: Type LA
• Color: Gray
• Finish: Hot dipped galvanized
• Inside Diameter: 0.622 to 0.642 IN
• Length_spec: 500 Ft
• Material: Steel
• Outside Diameter: 0.82 to 0.84 IN
• Temperature Rating: -30 to 80 deg C Dry/60 deg C Wet/70 deg C Oil
• Trade Size: 2-Jan IN
• Country of Origin: United States
• Standard Colors: Machine Tool Gray and Black. Other colors available upon request.
• Working Temperatures: -30°C to 80°C Dry / 60°C Wet / 70°C Oil
• Outside Diameter Maximum: .840 in.
• Inside Diameter Maximum: 0.642 in.
• Inside Bend Radius: 3 in.
• Inside Diameter Minimum: 0.622 in.
• Outside Diameter Minimum: .820 in.
• Resistance: Oils and Mild Acids
• Flame Retardant: Yes
• Sunlight Resistance (UV): Excellent
• Inner Core: Hot Dipped Galvanized Steel
• Liquidtight Jacket: Flexible PVC
