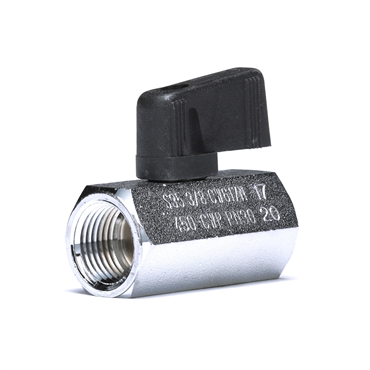

DynaQuip Controls VNH3.AM3/8 VNH Series One-Piece Brass Mini Ball Valve

Product Description

The DynaQuip Controls VNH3.AM3/8 is a mini ball valve designed for use in air, water, gases, and liquids. This product features a compact design that is easy to install in tight spaces. The chrome-plated brass body enhances durability and corrosion resistance. The valve includes a bottom-loaded stem with a Viton stem seal, and each unit is leak tested to ensure reliability and performance.

• Compact space-saving design
• Leak tested for reliability
• Compatible with various fluids and gases

Product Highlights

This mini ball valve provides efficient fluid control and is suitable for both residential and industrial applications.

Product Information

Standard Information

• Brand: DynaQuip Controls
• Part Number: 101965100

Technical Specifications

• Type: Mini Ball Valve, Reduced Port
• Pressure Max: 600 psi, 450 psi
• Thread Size: 3/8
• Temperature Range Min: -4 °F
• Temperature Range Max: 200 °F
• Overall Length: 1.710 inches
• Ball Material: Chrome Plated Brass
• Body Material: Brass
• Connection Type: FNPT
