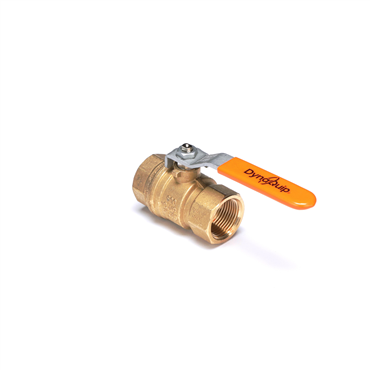

DynaQuip Controls VMH2.A93/8 VMH Series Two-Piece Screwed Body Brass Ball Valve

Product Description

The DynaQuip Controls VMH2.A93/8 is a full-port, two-piece, screwed body valve designed for commercial and industrial applications. It is made of a corrosion-resistant forged brass body and features a chrome-plated brass ball along with reinforced PTFE seats for reliable performance.

• Corrosion-resistant forged brass body
• Lever handle with vinyl grip
• Bottom-loaded stem with adjustable PTFE packing

Product Highlights

This valve is suitable for non-potable water applications, with options for lead-free versions. It complies with UL for LP gas and AGA for natural gas approvals, making it versatile for various uses.

Product Information

Standard Information

• Brand: DynaQuip Controls
• Part Number: VMH2.A93/8

Technical Specifications

• Handle Material: Steel
• Connection Type: FNPT
• Port Size: 3/8
• Cv Flow: 11.4
• Series: VMH
• Stem Material: Nickel Plated Brass
• Type: Economy, Full Port
• Body Material: Brass
• Temperature Range (Max): 370 °F
• Pressure (Max): 600 psi
• No. of Ports: 2
• Seal Type: PTFE
• Body Length: 1.77 in
• Thread Type: NPT
• Body Style: 2 Piece
• Handle Type: Lever
• Ball Pattern: Straight Through
• Temperature Range (Min): -20 °F
• Weight: 4.2 LB
• EAN or UPC: 649848007910
