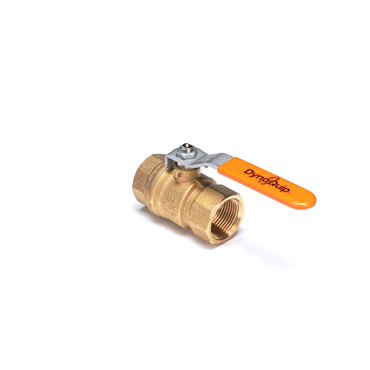

DynaQuip Controls VMH2.A92 VMH Series Two-Piece Screwed Body Brass Ball Valve

Product Description

The DynaQuip Controls VMH2.A92 is a full-port, two-piece, screwed body valve designed for commercial and general industrial applications. The valve features a corrosion-resistant forged brass body, a chrome-plated brass ball, and reinforced PTFE seats.

• Full-port design for efficient flow.
• Lever handle with vinyl grip for ease of use.
• Bottom-loaded stem with adjustable PTFE packing.

Product Highlights

Suitable for various applications but not for potable water. It comes in lead-free options with UL and AGA approvals.

Product Information

Standard Information

• Brand: DynaQuip Controls
• MPN: VMH2.A92

Technical Specifications

• Ball Material: Chrome Plated Brass
• Connection Type: FNPT
• Series: VMH
• No. of Ports: 2
• Handle Type: Lever
• Thread Size: 2
• Temperature Range [Max]: 370 °F
• Temperature Range [Min]: -20 °F
• Valve Type: Ball Valve
• Body Length: 4.76 inches
• Stem Material: Nickel Plated Brass
• Ball Pattern: Straight Through
• Port Type: Female NPT x Female NPT
• Seat Material: RTFE
• Body Material: Brass
• Pressure [Max]: 600 psi
• Port Size: 2
• Seal Type: PTFE
• Body Style: 2 Piece
• Type: Economy, Full Port
• Cv Flow: 205
• Weight: 17.2 LB
