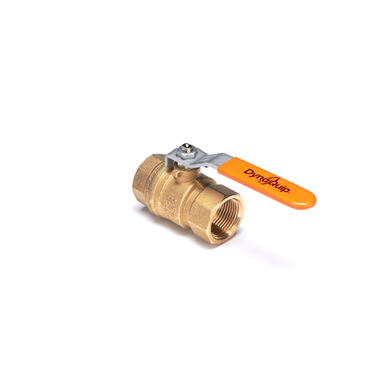

DynaQuip Controls VMH2.A911/4 VMH Series Two-Piece Screwed Body Brass Ball Valve

Product Description

The DynaQuip Controls VMH2.A911/4 is a full-port, two-piece, screwed body brass ball valve designed for commercial and general industrial applications. This valve features a corrosion-resistant forged brass body with a chrome-plated brass ball and reinforced PTFE seats.

• Full-port design for efficient flow
• Lever handle with vinyl grip
• Bottom-loaded stem with adjustable PTFE packing

Product Highlights

Not suitable for potable water, and available in lead-free versions. Options for lockout and T-handles enhance operational flexibility.

Product Information

Standard Information

• Brand: DynaQuip Controls
• MPN: VMH2.A911/4

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Brass
• Body Style: 2 Piece
• Port Type: Female NPT x Female NPT
• Port Size: 1 1/4
• Pressure Max: 600 psi
• Temperature Range Min: -20 °F
• Temperature Range Max: 370 °F
• Cv Flow: 77
• Handle Type: Lever
