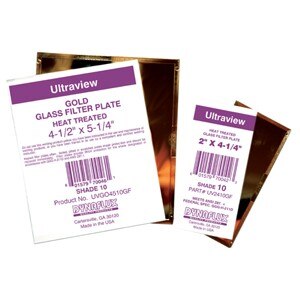

Dynaflux UVGO4510GF Gold Glass Filter Plate Shade 10

Product Description

The DYNAFLUX UVGO4510GF is a heat-treated gold glass filter plate used in welding helmets and hand shields to protect the eyes and face from arc radiation, infrared light, and ultraviolet exposure. The gold-coated lens provides a Shade 10 optical density, appropriate for shielded metal arc welding, MIG, and similar processes at moderate amperage ranges. Measuring 4.5 inches by 5.25 inches, this filter plate fits standard-format welding lens openings. It is sold individually and is intended for installation by welding professionals or safety equipment technicians performing lens replacement or initial equipment setup.

This filter plate is suited for use in welding helmets, flip-front welding shields, and goggle-style face protection that accept a 4.5-inch by 5.25-inch passive filter lens. Shade 10 filtration is commonly selected for SMAW and GMAW applications within typical mid-range amperage operating conditions. The gold coating reflects radiant heat in addition to filtering optical radiation, making it a practical choice in high-heat welding environments.

Key Features

• Heat-treated glass construction for thermal durability and optical clarity
• Gold shaded coating reflects infrared radiation in addition to filtering UV and visible arc light
• Shade 10 optical density suitable for moderate-amperage arc welding processes
• Standard 4.5 inches x 5.25 inches format fits a wide range of passive welding helmets and shields
• Sold as a single unit for direct replacement use

Compatibility

Designed as an OEM-style replacement filter plate for passive welding helmets and hand shields that accept a 4.5-inch by 5.25-inch filter lens opening.

Installation Notes

Filter plate replacement is typically performed by welding equipment technicians or end users following the helmet or shield manufacturer's lens replacement procedure. Ensure the welding helmet or shield is fully removed from service before replacing the filter plate. Handle glass filter lenses with care to avoid surface scratches or edge chips that could compromise optical integrity or structural safety. Verify that the installed shade number meets ANSI Z87.1 requirements for the specific welding process and amperage in use.

Technical Specifications

• Lens Shade: 10
• Dimensions: 4.5 inches x 5.25 inches
• Lens Type: Gold glass filter plate
• Construction: Heat-treated glass with gold coating
• Weight: 0.05 pounds
• Sold As: Each

Standard Information

• Brand: DYNAFLUX
• Manufacturer Part Number: UVGO4510GF
