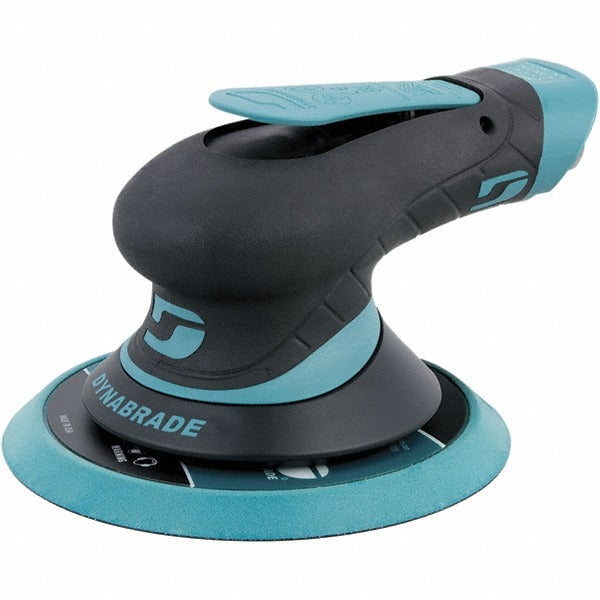

Dynabrade X61 6 Inch Random Orbital Air Sander 12000 Opm

Product Description

The DYNABRADE X61 is a pneumatic random orbital sander built for surface finishing work in automotive, fabrication, and industrial environments. Powered by compressed air at 90 psi with a 19 CFM air consumption rate, it runs a 6-inch adhesive PSA backing pad at up to 12,000 OPM. The 3/16-inch orbit diameter delivers a fine, swirl-minimizing finish suited for paint prep, primer sanding, and final-stage surface leveling. At 1.86 pounds, it is light enough for extended overhead and vertical work. The 1/4 NPT inlet connects to standard shop air lines with a minimum 0.25-inch hose. Output is 0.3 HP.

The X61 is used in body shop, metal fabrication, woodworking, and general industrial finishing applications. It is well suited for flat and slightly contoured surfaces where a 6-inch round pad provides consistent coverage. The random orbital action reduces cross-hatch scratching and is appropriate for finish sanding bare metal, wood, plastic, or primed surfaces before topcoat application. Licensed automotive technicians, body shop finishers, and industrial maintenance personnel are the typical operators.

Key Features

• 6-inch round adhesive PSA backing pad for wide surface coverage
• 12,000 OPM operating speed for efficient material removal and finishing
• 3/16-inch orbit diameter minimizes swirl marks on finish surfaces
• Lightweight at 1.86 pounds for reduced operator fatigue during extended use
• 1/4 NPT inlet compatible with standard shop air supply lines
• 0.3 HP pneumatic motor requires no electrical power source

Compatibility

Designed as an OEM-style pneumatic random orbital sander accepting standard 6-inch round adhesive PSA sanding discs with a 1/4 NPT compressed air supply at 90 psi.

Installation Notes

Installation is performed by the operator or a qualified pneumatic tool technician. Before connecting to an air supply, verify the line pressure is regulated to 90 psi and the minimum hose size of 0.25 inches is met to ensure rated performance. Use a properly rated air line filter-regulator-lubricator (FRL) assembly upstream to protect the motor and extend tool life. Disconnect from the air supply before changing the backing pad or sanding disc.
