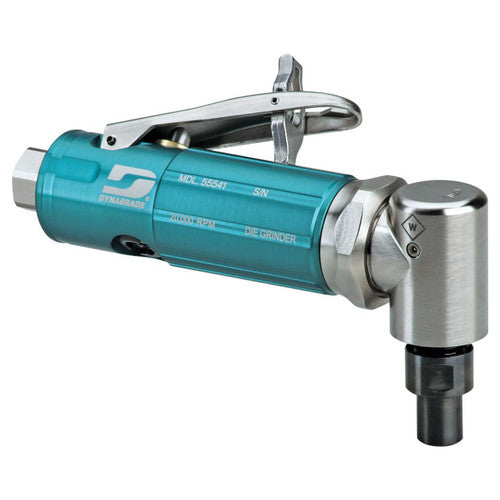

Dynabrade 55541 Right Angle Die Grinder, .4HP, 20000RPM

Product Description

The Dynabrade 55541 Right Angle Die Grinder is widely used in aerospace manufacturing facilities for deburring and material removal applications. The 0.4 hp tool provides added power for substantial industrial applications. This die grinder is compatible with a wide variety of abrasive products and meets required industrial regulatory standards.

• “Featherable” trigger enables the operator to vary and control the speed of the tool during use
• Newly designed precision Gear Set is smaller than current .4 hp RA gears and intended to further maintain tool’s performance
• Each housing is machine processed from a single piece of bar stock reducing the possibility for any structural weaknesses

Product Highlights

This right angle die grinder features an aluminum housing, a non-vacuum design, and a rear exhaust. Its ergonomic design minimizes operator fatigue.

Product Information

Standard Information

• Brand: DYNABRADE
• Manufacturer Part Number: 55541
• Country of Origin: United States

Technical Specifications

• Type: Die Grinder
• Style: Right Angle
• Housing: Aluminum
• Vacuum Type: Non-Vacuum
• Exhaust: Rear
• Power (HP): 0.4
• Power (W): 298
• RPM: 20000
• Collet Size (in.): 0.25
• Collet Size (mm): 6
• Air Consumption (SCFM): 24
• Air Consumption (l/mn): 680
• Air Inlet Thread (in.): 0.25
• Hose I.D. (in.): 0.25
• Hose I.D. (mm): 6
• CE Certified: Yes
• EAN (UPC) Code: 0616026555419
• EAC Certified: No
• Manufacturer Part Number: 55541
• Air Inlet Thread: 1/4" NPT
• Collet Insert Size (Inch): 1/4"
• Free Speed RPM: 20000
• Power (hp): 0.4 hp
• Maximum RPM: 20000.0
• Motor RPM: 20000
• Motor Type: Rotary Vane
• Tool Style: Right Angle
• Product Type: Angle Die Grinder
• Country of Origin: United States
