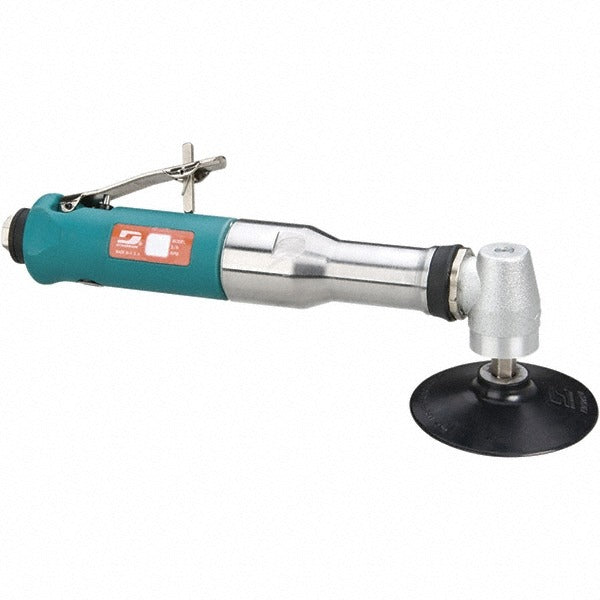

Dynabrade 54409 Air Handheld Disc Sander 4 Inch 0.70 Hp

Product Description

The DYNABRADE 54409 is a pneumatic handheld disc sander built for sustained material removal in metalworking, fabrication, and surface preparation applications. Powered by compressed air at 90 psi, it spins a 4-inch abrasive disc at 12,000 RPM and delivers 0.70 horsepower to the work surface. Air consumption runs at 40 CFM, so a properly sized compressor and supply line are required for consistent performance. The tool connects via a 1/4-inch inlet fitting standard on most shop air systems. Weighing 3.3 pounds, it is light enough for extended overhead or vertical work. This sander is installed and serviced by machinists, fabricators, body shop technicians, and industrial maintenance mechanics.

This tool is suited for both production and maintenance environments where aggressive disc sanding is required. Typical applications include weld seam blending, rust and scale removal, paint stripping, and surface conditioning on steel, aluminum, and other metals. The compact 4-inch disc size allows access to tighter work areas than larger angle grinders. It performs equally well in job-shop settings and on assembly lines where pneumatic tools are the standard platform. A regulated, filtered, and lubricated air supply will extend tool life and maintain rated speed under load.

Key Features

• Operates at 12,000 RPM for aggressive material removal with 4-inch abrasive discs
• 0.70 HP pneumatic motor provides consistent torque without electrical hazard in wet or conductive environments
• 90 psi operating pressure compatible with standard shop compressor systems
• 1/4-inch air inlet fits common quick-connect fittings used in most production and shop environments
• 3.3-pound tool weight reduces fatigue during extended vertical or overhead use
• 40 CFM air consumption requires an adequately sized compressor and supply line for rated performance

Compatibility

Designed for use with 4-inch abrasive discs and connects to standard 1/4-inch compressed air supply lines common in industrial and production shop environments.

Installation Notes

Installation and operation of this tool should be performed by personnel familiar with pneumatic tool safety practices. Before attaching or removing abrasive discs, disconnect the air supply completely. Ensure the shop air system includes a filter, regulator, and lubricator upstream of the tool to maintain rated performance and prolong service life. Always verify that abrasive discs are rated for the tool speed of 12,000 RPM or higher before use, per applicable ANSI abrasive safety standards.
