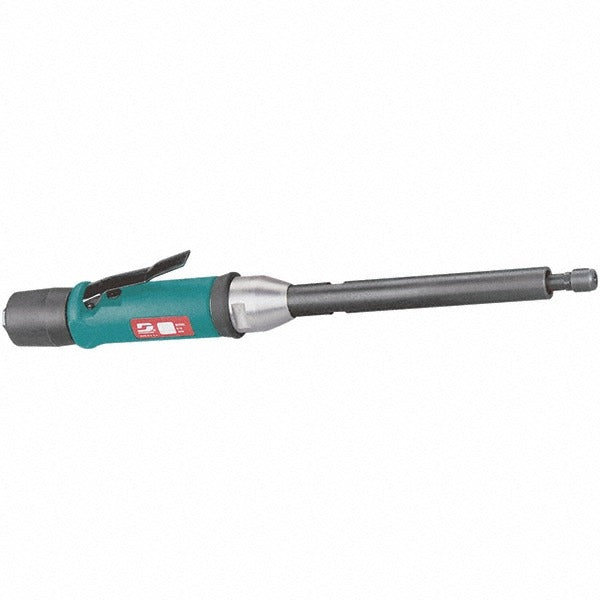

Dynabrade 53501 Air Die Grinder 0.5 Hp 18000 Rpm

Product Description

The DYNABRADE 53501 is a straight extended-length air die grinder designed for precision grinding, deburring, and surface finishing in tight or deep-access areas. Powered by compressed air at 90 psig, it delivers up to 0.5 hp and runs at up to 18,000 RPM, making it well suited for material removal on metal, composites, and similar workpieces. The lever throttle provides responsive speed control. Rear exhaust directs airflow away from the work surface and operator. This tool is intended for use by machinists, fabricators, maintenance technicians, and other trade professionals working in industrial and manufacturing environments.

The 53501 is built for applications where a standard-length die grinder cannot reach, including internal bore work, weld cleanup in confined spaces, mold and die finishing, and porting work. It accepts a 1/4 inch collet insert (01485) and a 6 mm collet insert (01497), both included, with optional compatibility for a 1/8 inch collet insert (01495). It is appropriate for both production floor and maintenance repair operations where consistent air supply is available.

Key Features

• Extended straight body provides access to deep or restricted work areas
• Runs at up to 18,000 RPM at 90 psig operating pressure
• Lever throttle for precise speed and feed control
• Rear exhaust keeps debris and airflow clear of the workpiece
• Includes 1/4 inch (01485) and 6 mm (01497) collet inserts
• CE Certified and EAC Certified for compliance in applicable markets

Compatibility

Accepts included 1/4 inch collet insert (01485) and 6 mm collet insert (01497). Fits optional 1/8 inch collet insert (01495), sold separately.

Installation Notes

Connection and operation should be performed by a qualified technician familiar with pneumatic tool safety. Before mounting or changing collets, disconnect the air supply line completely. Verify the compressed air supply is regulated to 90 psig and that air quality meets the tool manufacturer requirements, including lubrication and moisture control. Follow applicable OSHA and ANSI B186.1 safe practices for portable air tools.
