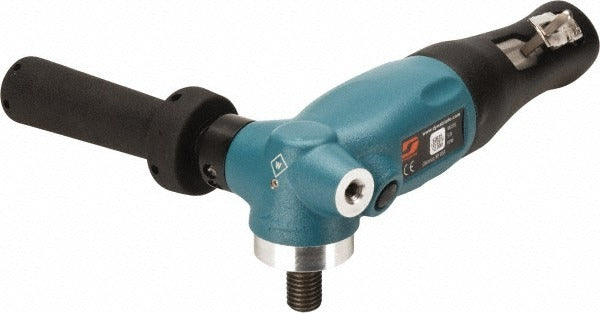

Dynabrade 52635 Air Handheld Disc Sander 1.3 Hp 5 in

Product Description

The DYNABRADE 52635 is a pneumatic handheld disc sander built for surface preparation, material removal, and finishing work in demanding trade environments. It runs on compressed air at 90 psi and delivers 12,000 RPM through a 5-inch pad, powered by a 1.3 hp motor. Air consumption is 43 CFM, and the tool connects via a 3/8 NPT inlet fitting. The 52635 ships with a 51150 backing pad and mounting hardware, making it ready for disc installation out of the box. It is suited for metal fabrication shops, automotive body work, industrial maintenance, and general construction finishing applications.

This sander accepts 5-inch abrasive discs and is used in both shop and field settings where a compact, high-speed pneumatic disc sander is required. Typical applications include weld seam blending, rust and coating removal, and surface prep before painting or bonding. The 3/8 NPT air inlet is a standard connection found on most shop air systems, allowing straightforward integration into existing compressed-air setups. The tool is designed for use by skilled tradespeople in fabrication, maintenance, and finishing roles.

Key Features

• 12,000 RPM free speed for aggressive material removal and fast finishing
• 1.3 hp pneumatic motor powered at 90 psi operating pressure
• 43 CFM air consumption — size your compressor and lines accordingly
• 3/8 NPT inlet fits standard shop air fittings without adapters
• Accepts 5-inch diameter abrasive discs with the included 51150 backing pad
• Includes mounting hardware — ready to load discs at the job site

Compatibility

Designed for use with 5-inch diameter abrasive discs. Includes the 51150 backing pad (5-inch, 127 mm diameter). Compatible with standard shop air systems supplying 90 psi through a 3/8 NPT connection.

Installation Notes

Installation and operation should be performed by personnel familiar with pneumatic power tools and shop air systems. Disconnect the air supply before mounting or changing abrasive discs. Verify that the compressed-air source meets the 90 psi and 43 CFM requirements before connecting, as insufficient flow will reduce tool performance. Follow applicable OSHA and manufacturer safety guidelines for abrasive disc RPM ratings — never mount a disc rated below the tool free speed of 12,000 RPM.
