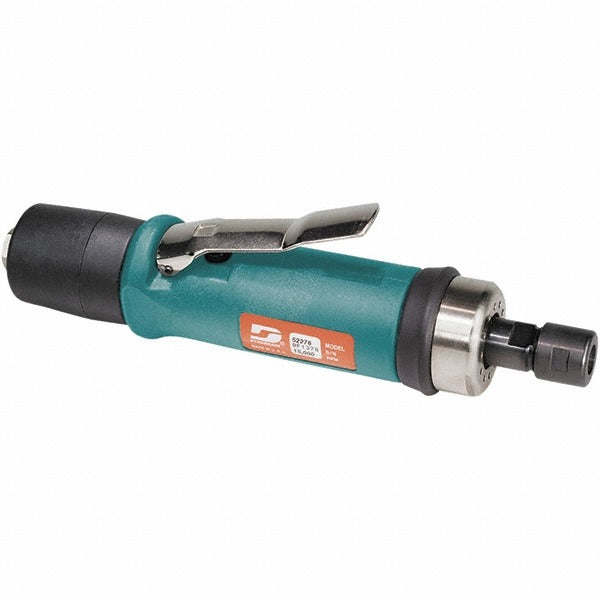

Dynabrade 52276 Straight Air Die Grinder 0.7 Hp 15000 Rpm

Product Description

The DYNABRADE 52276 is a straight air die grinder designed for precision material removal, grinding, deburring, and surface finishing in demanding trade and industrial applications. Powered by compressed air at 90 psig, it delivers 0.7 horsepower and operates at up to 15,000 RPM. The lever-style throttle gives the operator direct speed control during use. Rear exhaust directs airflow away from the work surface, keeping the work area cleaner and reducing debris interference. This grinder ships with a 1/4 inch collet insert and accepts optional collets in 1/8 inch, 3/8 inch, 6 mm, and 8 mm sizes, making it adaptable across a wide range of tooling.

The 52276 is suited for metal fabrication shops, automotive repair facilities, HVAC ductwork finishing, and general mechanical trade work where a compact straight-body grinder is required. Its lightweight build at 2.3 pounds reduces fatigue during extended use. The lever throttle allows for precise starts and stops, which is important in close-tolerance deburring or die work. Machinists, pipefitters, sheet metal workers, and general maintenance technicians are the typical end users for this tool class.

Key Features

• Operates at up to 15,000 RPM for efficient material removal and finishing
• 0.7 HP air motor powered at 90 psig inlet pressure
• Lever throttle provides precise speed control and easy on/off operation
• Rear exhaust directs air away from the workpiece and operator
• Includes 1/4 inch collet insert; compatible with optional 1/8 inch, 3/8 inch, 6 mm, and 8 mm collets
• Weighs 2.3 pounds for reduced operator fatigue during extended use

Compatibility

Includes 1/4 inch collet insert (50013). Fits optional collets: 1/8 inch (50065), 3/8 inch (50014), 6 mm (50016), and 8 mm (50039). Designed for use with standard compressed air systems supplying 90 psig at the tool inlet.

Installation Notes

Installation and operation of this tool should follow the manufacturer guidelines and applicable workplace safety codes. Before connecting to an air supply, verify the air line pressure does not exceed the rated 90 psig inlet pressure. Use a properly sized air fitting and ensure the collet is fully seated and tightened before mounting any accessory. Always disconnect the air supply before changing collets or accessories.
