Dynabrade 52212 Angle Air Die Grinder 0.5 Hp 20000 Rpm

Product Description

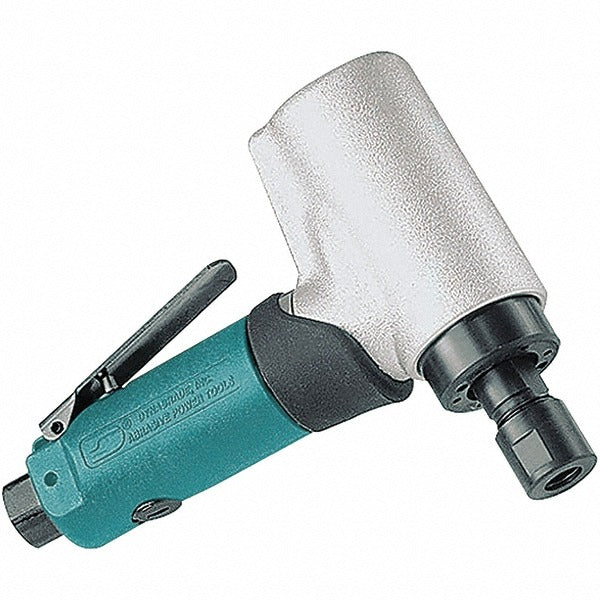

The DYNABRADE 52212 is an angle air die grinder designed for precision material removal, deburring, and surface finishing in demanding shop and field environments. Powered by compressed air at 90 psig, it delivers up to 0.5 horsepower and runs at 20,000 RPM with a lever-style throttle for controlled operation. The front exhaust directs air away from the work surface, keeping the workpiece clear during use. It accepts a 1/4 inch collet insert as standard, with optional collet sizes available to accommodate a range of bit shanks. Licensed tradespeople in manufacturing, fabrication, and HVAC metalwork are the primary installers and operators of this tool.

This angle die grinder is suited for applications requiring access to tight angles and confined spaces, including weld grinding, port work, mold finishing, and precision deburring on metal, composite, or plastic materials. The lever throttle provides variable speed control through a natural grip, making it practical for both sustained runs and intermittent finishing passes. Its compact angle head geometry allows work in areas where straight-body grinders cannot reach.

Key Features

• Lever throttle for variable speed control and ergonomic operation
• Front exhaust design directs airflow away from the work surface
• Includes 1/4 inch and 6 mm collet inserts for immediate use
• Compatible with optional 1/8 inch, 3/8 inch, and 8 mm collet inserts
• CE Certified and EAC Certified for international compliance
• Speed range of 18,000 to 24,999 RPM for versatile material removal rates

Compatibility

Includes 1/4 inch (50013) and 6 mm (50016) collet inserts. Fits optional 1/8 inch (50065), 3/8 inch (50014), and 8 mm (50039) collet inserts.

Installation Notes

This tool is intended for use by trained pneumatic tool operators and trade professionals. Before attaching or changing collet inserts, shut off the air supply and bleed residual pressure from the line. Ensure the air supply is filtered, lubricated, and regulated to 90 psig before operation. Do not exceed the rated RPM when selecting grinding accessories, and verify accessory ratings match or exceed the tool speed.
