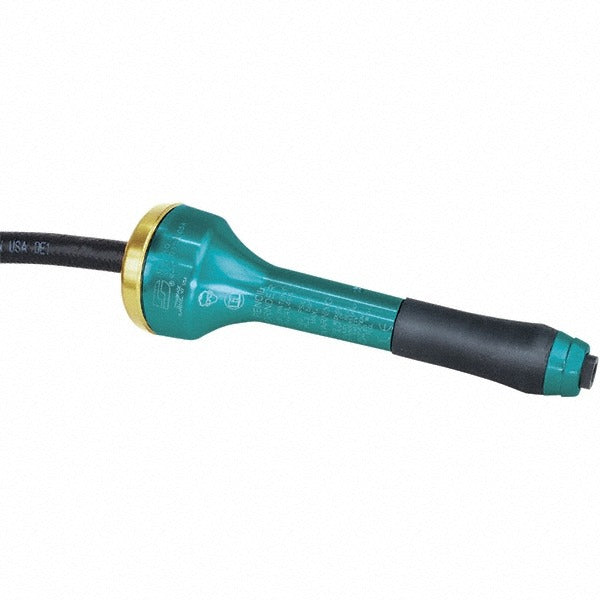

Dynabrade 51703 Straight Air Die Grinder 50000 Rpm

Product Description

The DYNABRADE 51703 is a straight air die grinder designed for precision grinding, deburring, and surface finishing in demanding trade and industrial environments. Powered by compressed air at 90 psi, the tool delivers a no-load speed of 50,000 RPM through a 1/8 inch collet, making it well-suited for detailed work in confined spaces. Output is rated at 0.1 hp with an air consumption of 8 CFM. A lever-style throttle provides smooth speed control, and the rear exhaust directs airflow away from the workpiece. The unit ships with a high-quality flexible air hose included.

The 51703 is used in metalworking, fabrication, automotive, and MRO applications where fine material removal or finishing is required. Its straight-body profile and high spindle speed make it a practical choice for technicians working on mold finishing, weld cleanup, and port work. It fits into standard shop setups running compressed air at 90 psi with adequate CFM supply from a compressor or distribution line.

Key Features

• 50,000 RPM no-load speed for high-speed precision work
• 1/8 inch collet accepts standard die grinder bits and burrs
• Lever throttle provides controlled variable-speed operation
• Rear exhaust keeps airflow directed away from the work surface
• Includes high-quality flexible air hose
• CE Certified and EAC Certified

Compatibility

Designed as a straight-body pneumatic die grinder compatible with standard 1/8 inch shank rotary accessories including carbide burrs, mounted grinding points, and abrasive bits used in metalworking and finishing applications.

Installation Notes

Installation and operation should be performed by qualified personnel familiar with pneumatic tool safety practices. Ensure the compressed air supply is set to 90 psi and the line delivers at least 8 CFM before connecting the tool. Disconnect the air supply before changing collet accessories or performing any adjustments. Use appropriate thread sealant on fittings and verify all connections are secure before operation.
