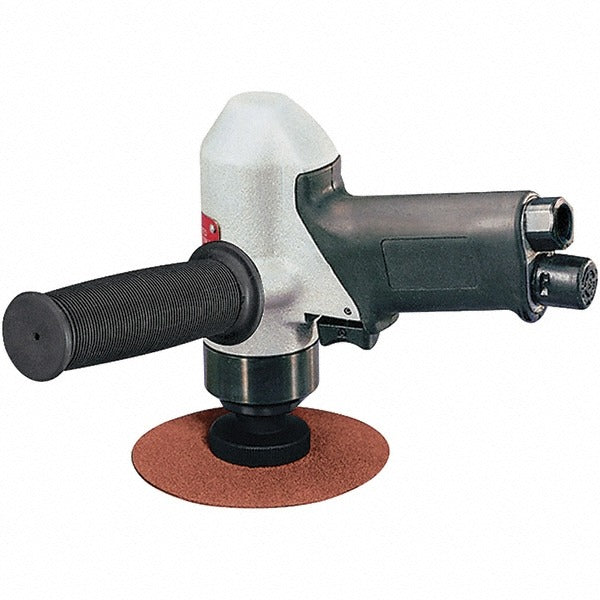

Dynabrade 50320 Air Disc Sander 4.5-5 in 8000 Rpm 0.7 Hp

Product Description

The DYNABRADE 50320 is a pneumatic handheld disc sander designed for aggressive material removal, surface preparation, and finishing work on metal, wood, and composite surfaces. It accepts abrasive discs ranging from 4.5 to 5 inches in diameter and operates at 8,000 RPM, delivering 0.7 hp from a compressed air supply at 90 psi with an air consumption of 30 CFM. The inlet is a standard 1/4 NPT fitting. The lever-style throttle gives operators precise speed control during use. This tool is suited for fabrication shops, metal finishing lines, and general industrial maintenance tasks performed by machinists, welders, and skilled trade technicians.

This disc sander is built for use in industrial and commercial environments where consistent, repeatable surface work is required. The rear exhaust design directs air away from the workpiece and operator, keeping the work area cleaner during extended use. It ships with the 50267 Disc Pad Assembly for center-hole abrasive discs sized 4.5 to 5 inches in diameter, allowing immediate use upon receipt. Typical applications include weld blending, rust removal, paint stripping, and stock removal on flat or contoured surfaces.

Key Features

• Operates at 8,000 RPM for fast material removal across a range of abrasive disc types
• Accepts 4.5 to 5 inch diameter center-hole abrasive discs
• Lever throttle provides variable speed control and positive shutoff
• Rear exhaust routes spent air away from the operator and workpiece
• 1/4 NPT air inlet is compatible with standard shop air fittings
• Includes 50267 Disc Pad Assembly for center-hole discs sized 4.5 to 5 inches

Compatibility

Designed for use with center-hole abrasive discs in 4.5 to 5 inch diameters. Includes the DYNABRADE 50267 Disc Pad Assembly. Requires a compressed air supply capable of delivering 90 psi and 30 CFM through a 1/4 NPT connection.

Installation Notes

This tool is installed and operated by machinists, fabricators, and industrial maintenance technicians. Before connecting to an air supply, verify the line pressure is regulated to 90 psi and that the CFM capacity of the compressor and lines meets or exceeds 30 CFM to avoid performance loss. Use a properly sized air fitting at the 1/4 NPT inlet and ensure all connections are secure before use. Always mount the abrasive disc according to the disc pad assembly instructions and inspect the disc for damage before each use.
