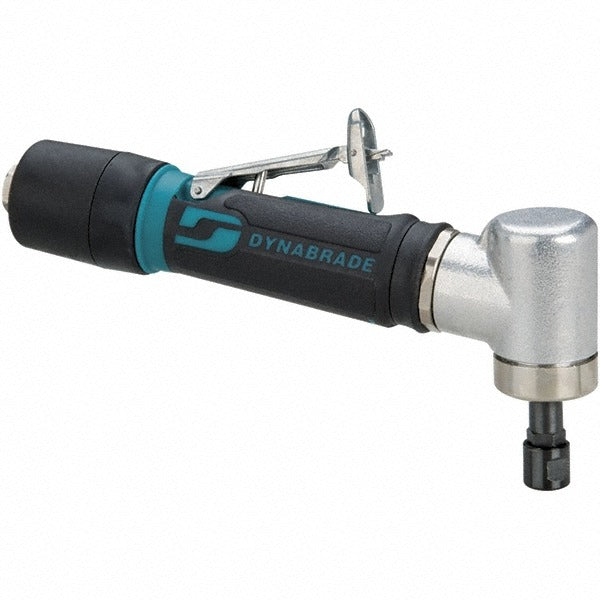

Dynabrade 48205 Angle Air Die Grinder 25000 Rpm 0.4 Hp

Product Description

The DYNABRADE 48205 is a lever-throttle angle air die grinder designed for precision grinding, deburring, and finishing work in industrial and trade environments. It runs at 25,000 RPM and draws 26 CFM at 90 psi, delivering 0.4 hp through a 6 mm collet. The rear exhaust design directs airflow away from the work surface and operator. The 7-degree offset head geometry allows access to recessed surfaces and tight angles that a straight die grinder cannot reach. Pneumatic tool technicians, machinists, fabricators, and maintenance professionals install and operate this tool across manufacturing, welding, and mechanical service settings.

The 48205 is suited for metalworking applications where a compact, angled grinder is needed to reach confined or angled work areas. The 6 mm collet accepts standard die grinder burrs, mounted points, and carbide bits commonly used in weld cleanup, port work, and surface prep. At 1.3 pounds, the tool is light enough for extended use without excessive fatigue. It is appropriate for production shops, fabrication facilities, and field maintenance work wherever a compressed air supply at 90 psi is available.

Key Features

• 25,000 RPM no-load speed for aggressive material removal with small-diameter tooling
• 7-degree offset angle head accesses recessed and angled surfaces
• Lever-style throttle provides variable speed control and positive shut-off
• 6 mm collet accepts a wide range of standard die grinder accessories
• Rear exhaust routes airflow away from the work area and operator
• Lightweight at 1.3 pounds, reducing operator fatigue during extended use
• CE Certified and EAC Certified for compliance in applicable markets

Compatibility

Designed for use with standard 6 mm shank mounted points, carbide burrs, and abrasive bits compatible with 1/4 NPT compressed air supply systems operating at 90 psi.

Installation Notes

Installation and operation should be performed by personnel familiar with pneumatic tool safety practices. Shut off and bleed the compressed air supply before connecting or disconnecting the tool or changing collet tooling. Ensure the air line is rated for the required CFM and psi before connecting, and verify that the collet nut is fully torqued with the appropriate wrench before operation. Always wear eye protection and follow applicable OSHA and facility safety requirements when operating die grinders.
