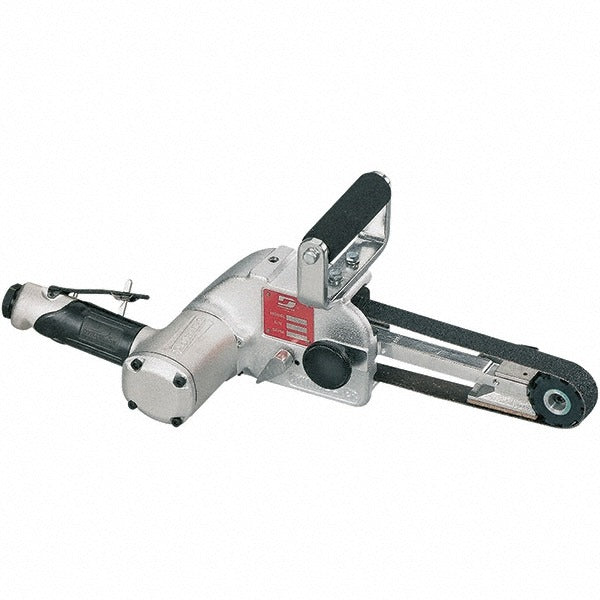

Dynabrade 11476 Belt Straight Sander 30 Inch 1.2 Hp

Product Description

The DYNABRADE 11476 is a corded belt straight sander designed for high-production material removal, blending, and finishing on flat and contoured surfaces. Powered by compressed air at 90 psi, it delivers 1.2 horsepower and a belt speed of 4,250 feet per minute, making it well suited to rapid stock removal and surface prep on metal, wood, or composite materials. The sander accepts a 30 inch abrasive belt and operates at 13,000 RPM. Air consumption runs at 58 CFM, requiring a properly sized compressor and supply line. Connection is through a 3/8 NPT inlet. This tool is typically installed and serviced by industrial maintenance technicians, metalworkers, and fabrication professionals.

The DYNABRADE 11476 fits straight-line sanding applications in fabrication shops, manufacturing facilities, and metalworking environments. It is suited for deburring, weld blending, and surface conditioning on flat stock and structural profiles. The inline ergonomic form factor gives operators consistent belt-to-workpiece contact along the full 30 inch belt length. It is intended for use with a regulated compressed air supply capable of sustaining adequate volume and pressure throughout the work cycle.

Key Features

• 30 inch abrasive belt length for extended contact area during straight-line sanding
• 13,000 RPM operating speed with 4,250 FPM belt surface speed for aggressive material removal
• 1.2 HP air motor provides consistent power output across the duty cycle
• 3/8 NPT inlet for straightforward integration into standard shop air systems
• 58 CFM air consumption — size the compressor and supply line accordingly
• 90 psi operating pressure for optimal motor performance

Compatibility

Designed for use with standard 30 inch abrasive belts compatible with straight belt sander configurations. No specific model or system compatibility data was provided in the product input.

Installation Notes

Installation and operation should be performed by qualified personnel familiar with pneumatic tooling and applicable OSHA and ANSI abrasive product safety standards. Before connecting to an air supply, verify that line pressure is regulated to 90 psi and that the supply can sustain 58 CFM without significant pressure drop. Inspect the abrasive belt for defects and confirm it is properly seated and tensioned before starting. Never exceed the rated operating pressure, and always disconnect the air supply before changing belts or performing any maintenance.
