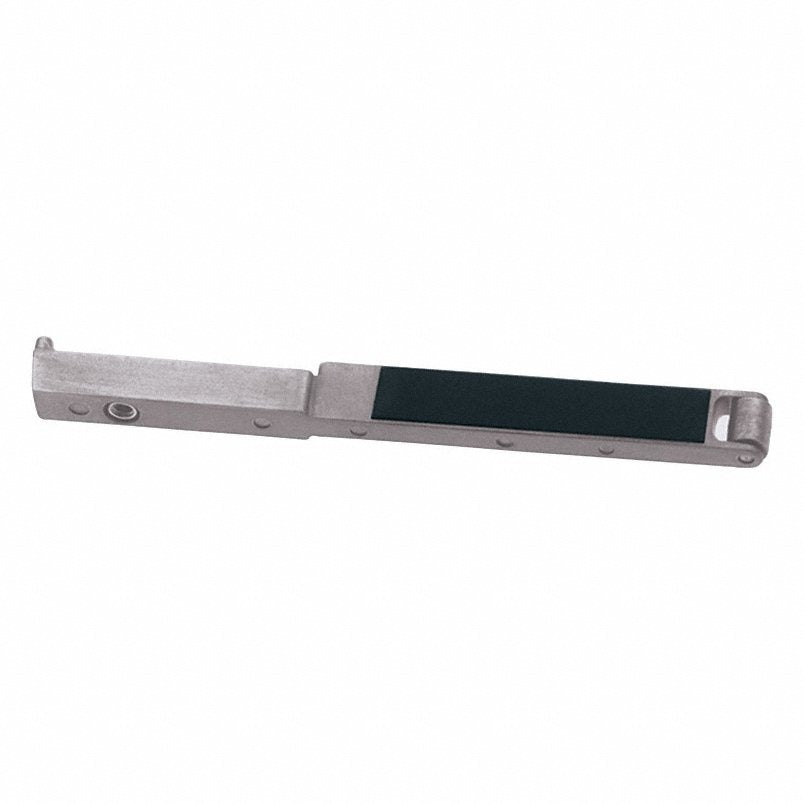

Dynabrade 11201 Contact Arm Assembly Dynafile Ii Series

Product Description

The DYNABRADE 11201 is a steel contact arm assembly designed for use with Dynafile II series pneumatic belt sanders. It accepts 1/2 inch wide by 18 inch long abrasive belts and features a 5/16 inch diameter crowned steel wheel with a 1/8 inch wheel width. The assembly includes a soft platen pad measuring 1/4 inch in width, allowing the tool to enter channels as small as 7/16 inch. Rated for a maximum operating pressure of 45 psig, this contact arm is intended for installation by tool and die technicians, metal fabricators, and maintenance trades working with precision abrasive applications.

This contact arm assembly is suited for deburring, blending, and finishing tasks in tight or confined workspaces where a standard contact arm cannot reach. The crowned wheel profile helps maintain consistent belt contact on curved or contoured surfaces. It is compatible with Dynafile II series sanders used in industrial, manufacturing, and fabrication environments. Compatible manufacturer model numbers listed in the input include 40352 and 40611.

Key Features

• Accepts 1/2 inch wide by 18 inch long abrasive belts
• 5/16 inch diameter crowned steel wheel for contoured surface contact
• Soft platen pad included, 1/4 inch wide
• Enters channels as small as 7/16 inch
• Rated for up to 45 psig operating pressure
• Steel construction throughout for durability in industrial use

Compatibility

Compatible with DYNABRADE Dynafile II series pneumatic belt sanders, including manufacturer model numbers 40352 and 40611.

Installation Notes

Installation is performed by disconnecting the air supply before removing or attaching any contact arm assembly. Standard pneumatic tool practices apply, including verifying that line pressure does not exceed the rated 45 psig maximum before operation. Inspect the belt and platen condition before reinstalling the tool in service. Consult the tool manufacturer's service documentation for proper attachment torque and assembly sequence.

Technical Specifications

• Product Type: Contact Arm Assembly
• For Belt Width: 1/2 inch
• For Belt Length: 18 inches
• Maximum Operating Pressure: 45 psig
• Wheel Diameter: 5/16 inch
• Wheel Width: 1/8 inch
• Wheel Shape: Crowned
• Wheel Material: Steel
• Platen Pad Width: 1/4 inch
• Platen Pad Density: Soft
• Minimum Channel Entry: 7/16 inch
• Material: Steel
• For Tool Series: Dynafile II
• Country of Origin: USA (subject to change)

Standard Information

• Brand: DYNABRADE
• Manufacturer Part Number: 11201
