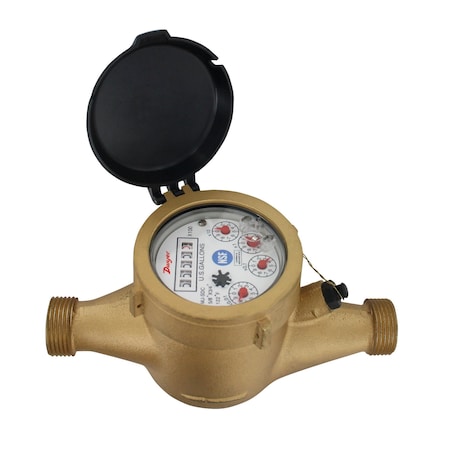

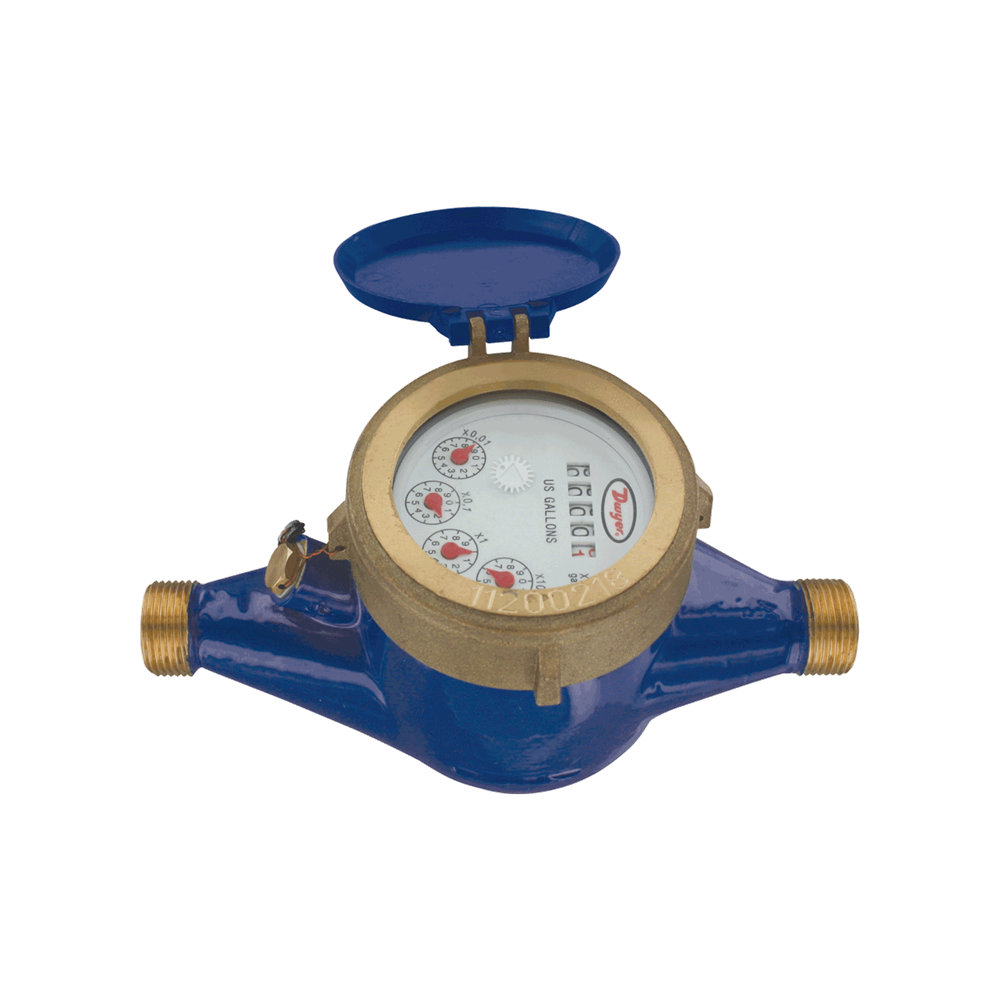

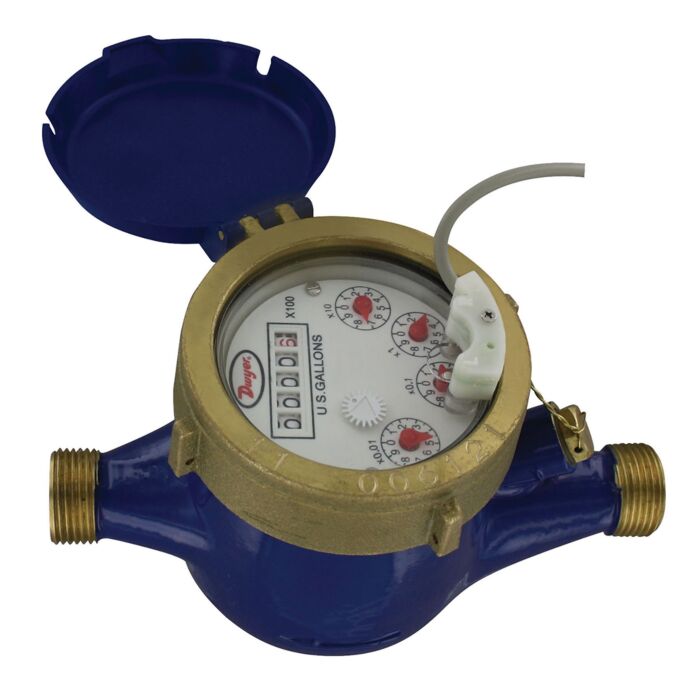

Dwyer WMT2-A-C-07-10 Multi-Jet Water Meter 160 GPM 10 gal/pulse

Product Description

The Dwyer WMT2-A-C-07-10 Multi-Jet Water Meter is designed for commercial and industrial applications. Its multi-jet design ensures simplicity and accuracy across a wide range of flows, even at low levels. The meter features a magnetically driven, hermetically sealed register that prevents leaks and fogging. The reed switch is activated by a magnet, providing an output proportional to the flow rate.

• Multi-jet design allows for simplicity and accuracy with wide flow ranges, even in low flow applications
• Magnetically driven, hermetically sealed register does not leak or fog and is completely separated from the water
• Designed for long service life and maintenance-free operation, even under harsh conditions

Product Highlights

This water meter is perfect for remote monitoring of flow rate or flow totalization, and can interface with PLC's, counters, data loggers, and SCADA systems.

Product Information

Standard Information

• Brand: DWYER
• Manufacturer Part Number: WMT2-A-C-07-10
• Country of Origin: China

Technical Specifications

• Coupling Size: 2" NPT
• Max Flow: 160 GPM
• Nominal Flow: 8 to 160 GPM
• Transitional Flow: 2 GPM
• Pulse Rate: 10 gal/pulse
• Temperature Limit: 104°F (40°C)
• Pressure Limit: 232 psi (16 bar)
• Electrical Connections: Color-coded lead wires, 4.5' (1.5 m) long
• Country of Origin (subject to change) [Specifications]: China
• Media Compatibility: Water
• Accuracy: Transitional flow: ±5%; Nominal flow: ±2%
• Process Variable: Flow
• Measurement Range: 8 - 160 GPM
• Body Material: Brass
• Pipe Size: 2 in
• Supply Voltage (Nominal): 24 VAC,24 VDC
• Max Temperature: 104 °F
• Service: Water
• Wetted Materials: Body: Brass, polyethylene; Couplings: Brass; Measuring chamber: Polyethylene, ABS plastic, ferrite, acetal
• Output Signal: Pulse output with frequency proportional to flow rate
• Pulse Options: 0.1 gal, 1 gal, 10 gal, 100 gal per pulse (1 L, 10 L, 100 L per pulse)
• Electrical Rating: 0.01 A @ 24 VAC/DC
• Mounting Orientation: Horizontal with the register face pointing up
• Magnetic Drive: water is sealed from entering register
• Dry dial: won't discolor or fade – hermetically sealed from the elements
• Integral strainer: that protects meters from particulate damage
• Indicator: Pointer-roller
• Body: Frost resistant
• Output: with pulse output
• Includes: two mounting adapters (couplings)
• Meter Size: 2"
• Type: brass multi-jet water meter (GPM)
• (Instrument-Sensor) Application: Water
• Component: Water Meter
• (Instrument-Sensor) Type: Multi-Jet Water Meter
• (Instrument-Sensor) Temperature Range: 104°F/40°C
• (Instrument-Sensor) Measurement Accuracy: 5.0%
• Manufacturer: Dwyer Instruments
• Flow Rate: 8-160 GPM
