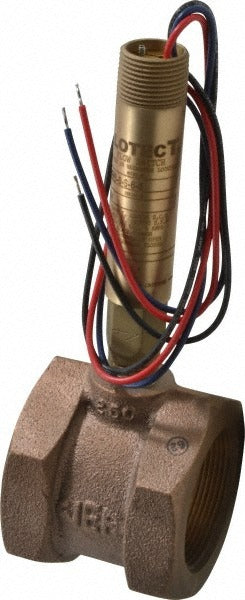

Dwyer V6EPB-B-S-6-B Flow Switch 2000 Psi Brass Npt

Product Description

The DWYER V6EPB-B-S-6-B is a Flowtect flow switch designed to detect flow presence or absence in liquid and gas systems. It uses a single-pole double-throw (SPDT) switching mechanism to trigger control circuits, alarms, or shutoffs when flow conditions change. The brass housing withstands up to 2,000 psi working pressure and handles operating temperatures from -4 degrees F to 220 degrees F. Rated at 5 amps, it connects via a 2-inch female NPT threaded port and uses a cable-type electrical connection. Licensed trades and industrial maintenance technicians are the primary installers.

This flow switch is suited for a wide range of industrial and commercial applications including pumps, motors, machines, liquid-cooled engines, dampers, emergency showers, and eyewash stations. It is compatible with both liquid and gas media, making it a versatile choice for process control and safety interlock systems. The NEMA 4 enclosure rating supports use in wet or washdown environments. Mounting orientation is unrestricted, allowing installation in any position to suit the system layout.

Key Features

• Brass housing rated to 2,000 psi for high-pressure liquid and gas service
• SPDT switching for direct integration with control panels, alarms, or relay circuits
• Wide temperature range: -4 degrees F to 220 degrees F
• 2-inch female NPT threaded connection for standard pipe fitment
• NEMA 4 enclosure rating suitable for wet and washdown environments
• Certified to ATEX, CE, CSA, IECEx, KTL, and UL standards
• Any-position mounting orientation for flexible installation

Compatibility

Suitable for use with gas and liquid media in pump, motor, machine, liquid-cooled engine, damper, emergency shower, and eyewash station applications requiring flow detection and SPDT switching output.

Installation Notes

Installation should be performed by a qualified electrician or licensed industrial mechanic familiar with process control wiring and applicable NEC requirements. De-energize all circuits and depressurize the pipeline before installing or servicing this switch. Use appropriate thread sealant rated for the media type when making the NPT connection. Verify that the supply voltage and load current do not exceed the switch rating before returning the system to service.
