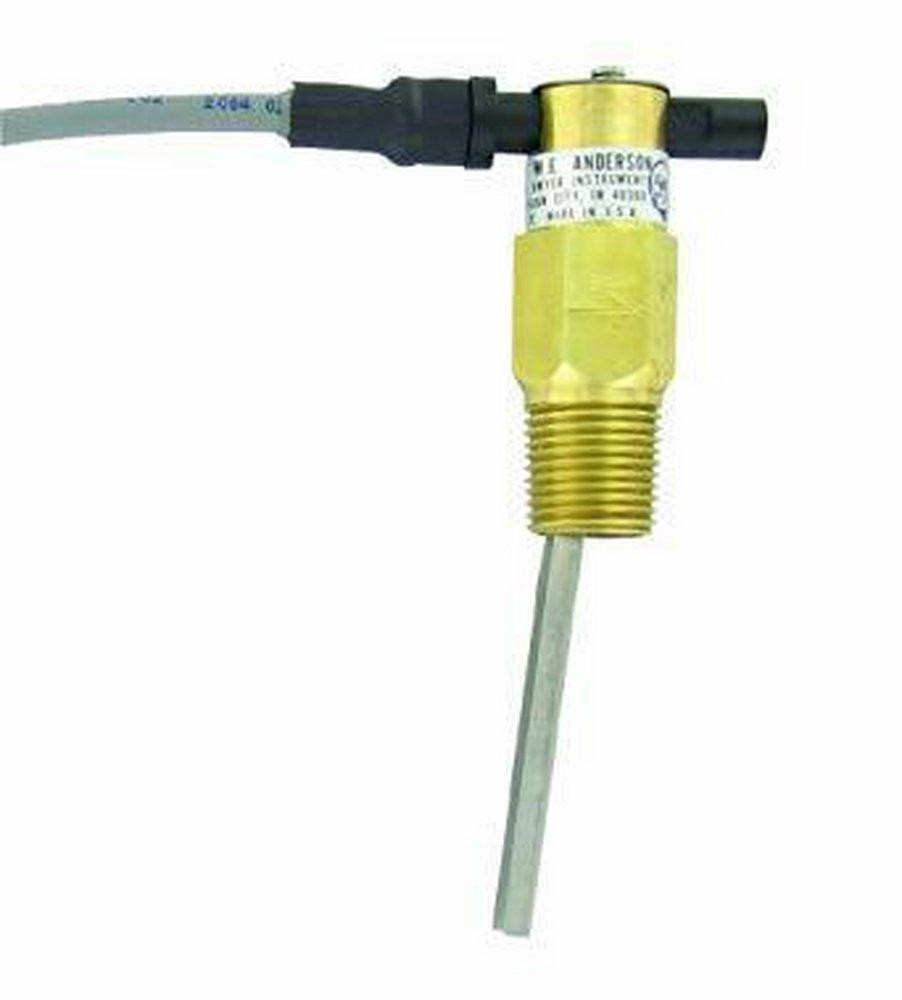

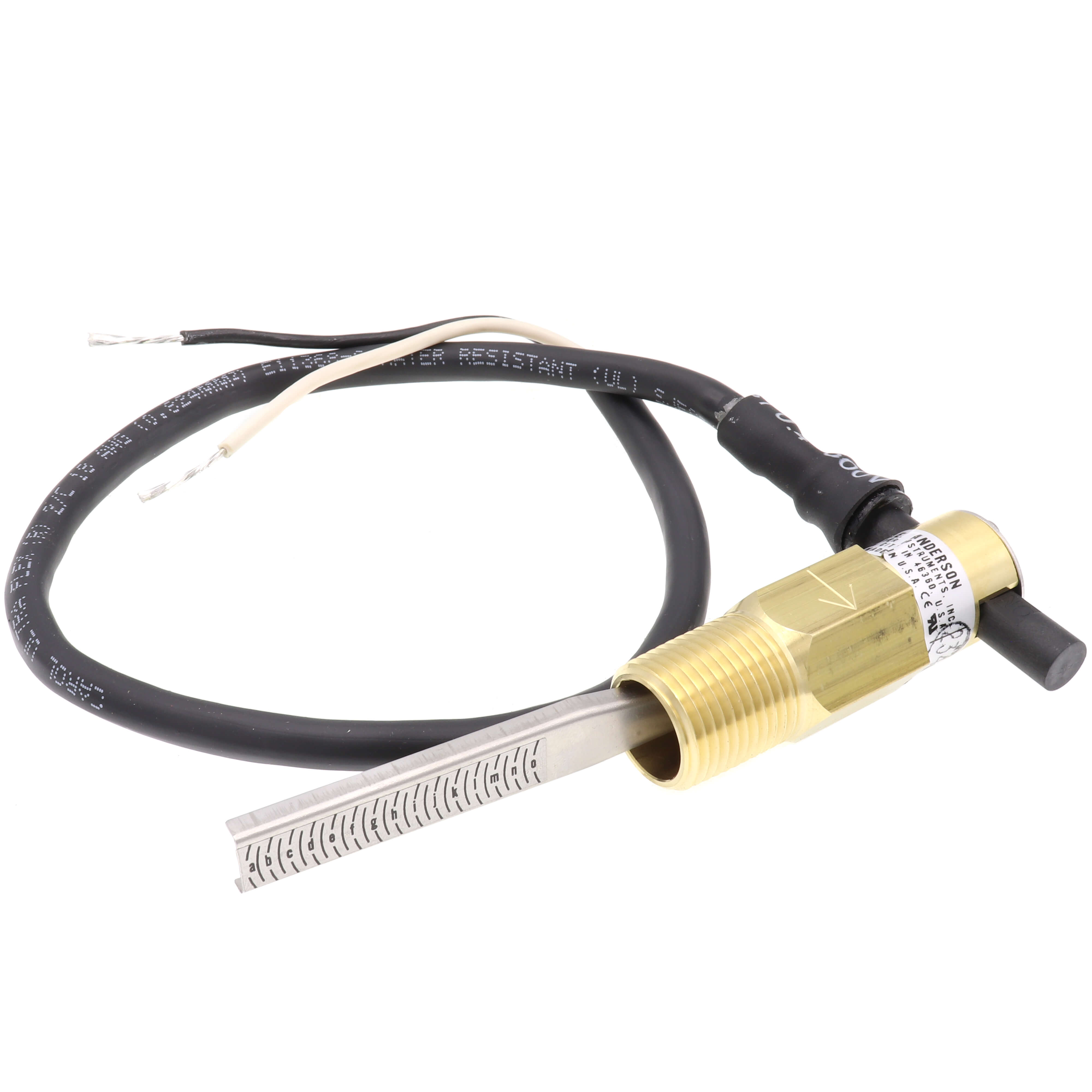

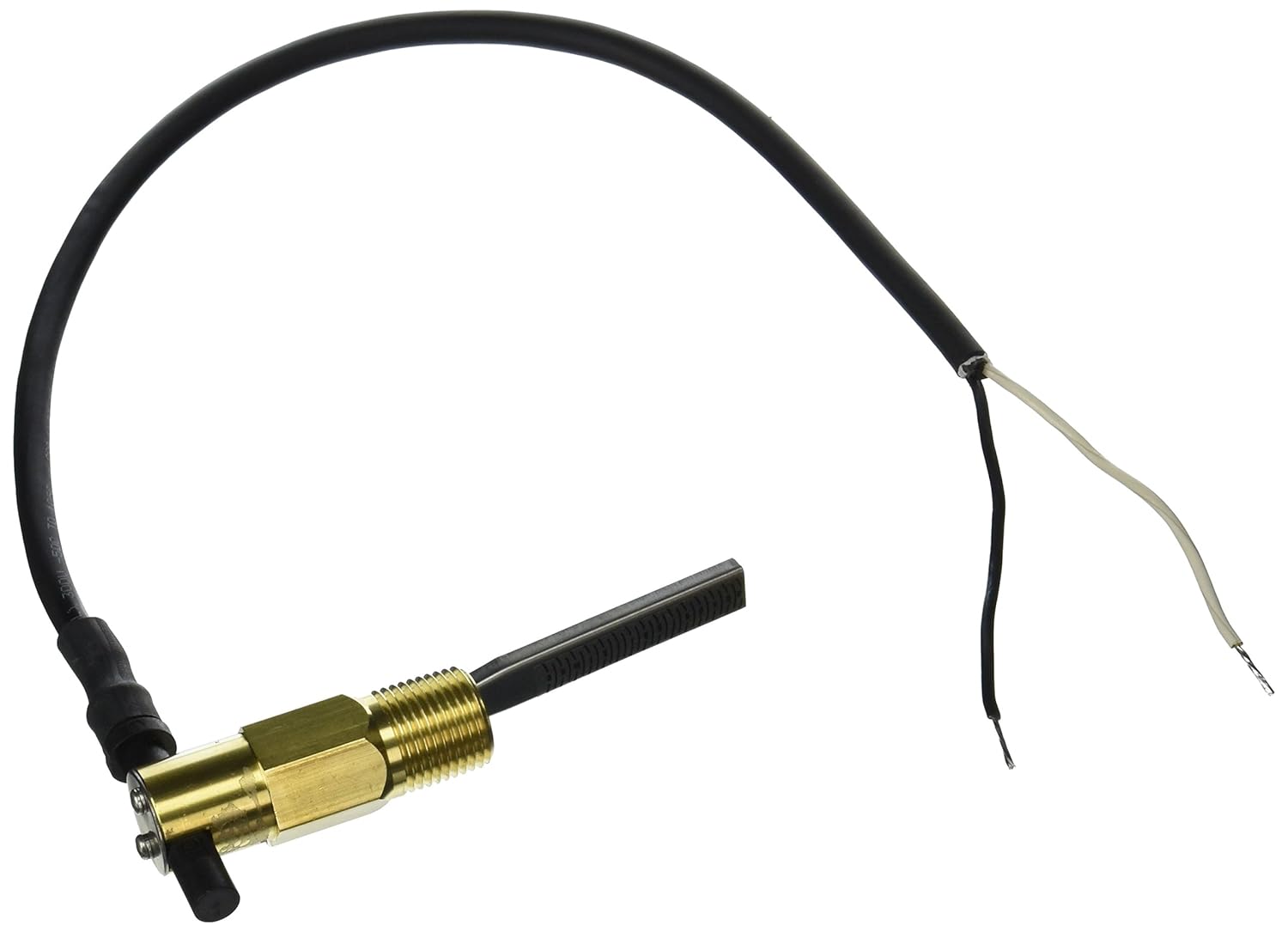

Dwyer V10 Flotect Flow Switch, Mini-Size, Brass Housing, 1/2 Male NPT

Product Description

The Dwyer V10 Flotect Flow Switch is designed for a variety of applications, providing reliable monitoring of flow presence or absence. With a compact and durable brass housing, this mini-size flow switch features a pressure range from 0 to 1000 psig and fits standard 1/2 inch male NPT pipe.

• Detects flow presence or absence
• Compact and durable brass construction
• Adjustable to normally open or closed state

Product Highlights

The Dwyer V10 Flow Switch is ideal for monitoring flow rates in pipelines ranging from 1/2 inch to 2 inches in diameter. The switch employs a rugged, hermetically sealed reed switch, adjustable to either normally open or closed by loosening two screws. Designed to prevent costly damage by monitoring unattended equipment, it can be easily maintained without interrupting process flow.

Product Information

Standard Information

• Brand: Dwyer Instruments
• MPN: V10

Technical Specifications

• Pressure Range: 0-1000 psig
• Connection: 1/2 inch Male NPT
• Housing Material: Brass
• Adjustability: Normally Open or Closed
• Switch Type: Hermetically Sealed Reed Switch
• Dimensions: Not provided
• Weight: 0.39 pounds
• International Protection Rating: IP54
