Product Description
The Dwyer TSW-150 Digital Temperature Switch combines the reliable TS family of temperature controls with a weatherproof enclosure. It features a range of applications such as controlling residential, commercial, and industrial heaters.
- Suitable for kegerators, window A/C, room heaters, sous vide, and more
- Output: R1 SPDT relay resistive load: 20A at 240 VAC
- Power requirements: 90 to 255 VAC
Product Highlights

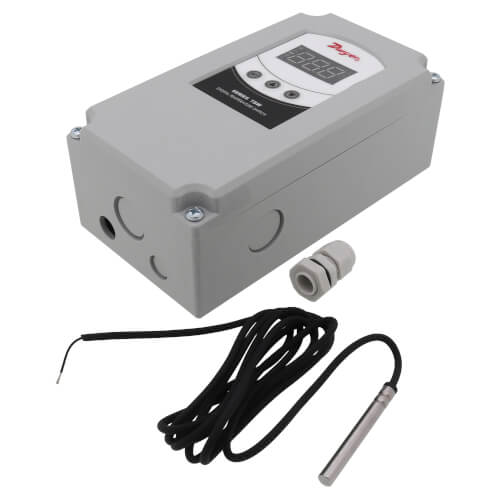

Ideal for residential, commercial, and industrial heating applications, the TSW-150 offers secure and flexible installation with multiple conduit knockouts. It includes a temperature probe and features a bright LED display for easy monitoring of temperature and output status.
Product Information
Standard Information
-
Item Number: TSW-150
-
Brand: Dwyer Instruments
Technical Specifications
-
Voltage: 90 to 220V AC
-
Amps: 20
-
Temp. Range: -58 degrees to 302 degrees F
-
Switch Function: SPDT
-
Output: (1) Relay
-
Display: Dual Red LED
-
Control Mode: ON/OFF
-
Housing: Weather-proof
-
Power Consumption: 3.6 VA
-
Dimensions: Length 6.65 inches, Width 3.63 inches, Depth 2.59 inches
-
Standards: CE, cUL, UL
