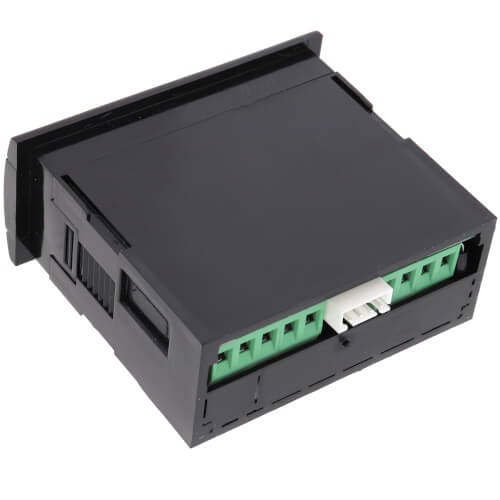

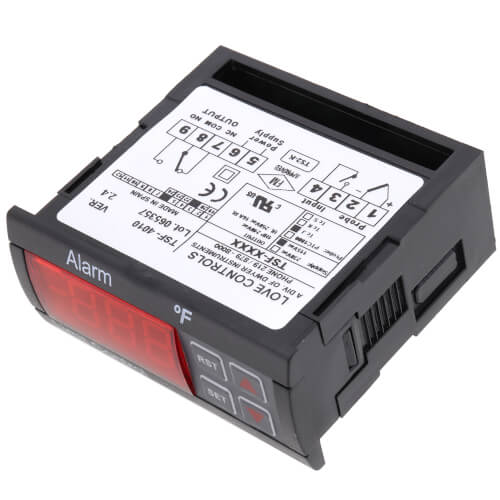

Dwyer TSF-4010 Series Thermocouple Limit Control Switch 110 VAC

Product Description

The Dwyer TSF-4010 Series Thermocouple Limit Control is an advanced temperature monitoring device designed to enhance system reliability and safety in industrial environments. This robust unit features a red display and is compatible with J, K, and S type thermocouples.

• FM approved for safety and reliability in temperature critical environments.
• Supports temperature ranges from 32 to 999 degrees Fahrenheit, adaptable to various industrial applications.
• Incorporates a 16A SPDT relay output for flexible and high-capacity electrical connectivity.

Product Highlights

The TSF-4010 is constructed with a user-friendly interface, featuring a built-in reset button and the ability to switch between automatic and manual reset. This versatility ensures optimal performance tailored to user needs across diverse industrial setups like ovens and burners.

Product Information

Standard Information

• Brand: Dwyer
• MPN: TSF-4010

Technical Specifications

• Type: Thermocouple Limit Control

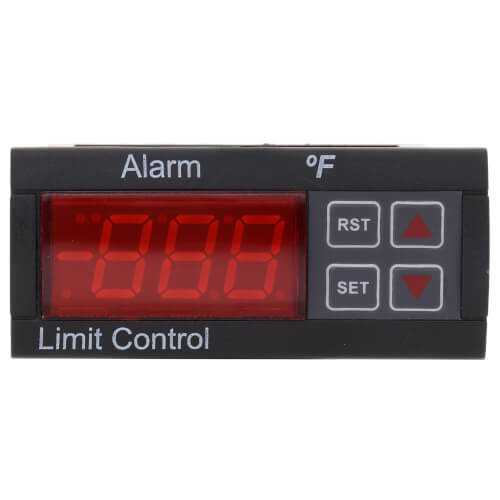

• Display: Red LED
• Input Type: J/K/S Thermocouples
• Voltage: 110 VAC
• Output: 16A SPDT Relay
• Safety Certifications: FM Approved
