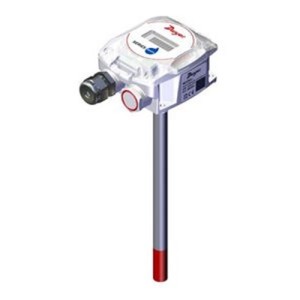

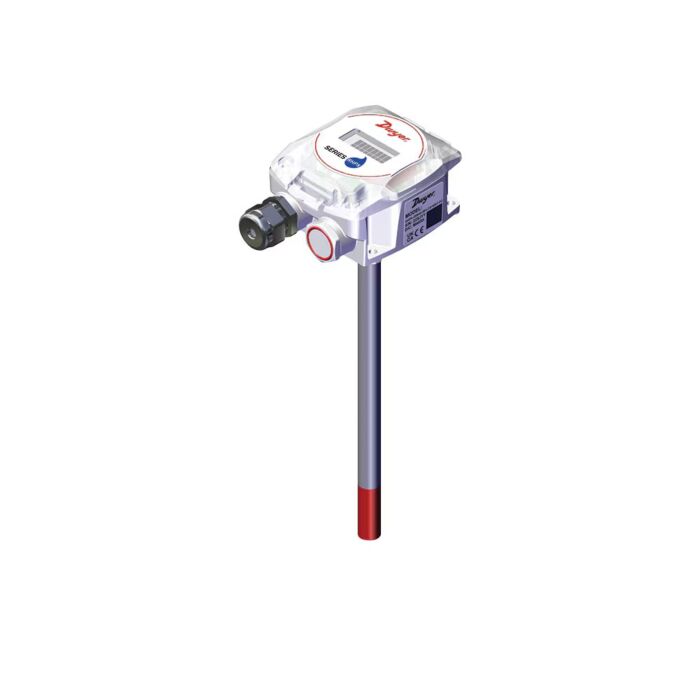

Dwyer RHPX-3SDA0-00 HMD/TEMP Transmitter Duct Mount Selectable Output

Product Description

The Dwyer RHPX-3SDA0-00 humidity and temperature transmitter is designed to accurately monitor humidity and temperature levels in various systems. It ensures comfort and cost efficiency in building control applications and commercial HVAC setups.

• Multiple on-board sensors for reduced installation costs
• UV rated outdoor enclosures that require minimal maintenance
• UL 2043 compliant for safe installation into plenum spaces

Product Highlights

This device is ideal for building energy management systems, clean rooms, museums, and data centers, providing reliable environmental monitoring.

Product Information

Standard Information

• Brand: Dwyer
• MPN: RHPX-3SDA0-00

Technical Specifications

• Display: Available
• Enclosure Rating: IP66
• Application: Humidity
• Operating Temperature Range: -40F to 140F, -40C to 60C; with LCD: -4F to 140F, -20C to 60C
• Humidity Measurement Range: 0% to 100% humidity
• Temperature Measurement Range: -40F to 140F, -40C to 60C
• Resolution Relative Humidity: 0.1%
• Resolution Temperature: 0.1F/C
• Resolution Absolute Humidity: 0.1 g/m3
• Humidity Analog Output: 4-20 mA or 0-5 VDC, 0-10 VDC at 5 mA max, field selectable
• Active Temperature Analog Output: 4-20 mA or 0-5 VDC, 0-10 VDC at 5 mA max, field selectable
• Power Requirements: Communications Model: 14 to 35 VDC or 10 to 32 VAC; Analog Model: 4-20mA: 10 to 35 VDC; Vout: 15 to 35 VDC or 15 to 29 VAC
• Wiring Connection: Removable terminal block
• Enclosure Material: UL 94 V-0
• Manufacturer: Dwyer
