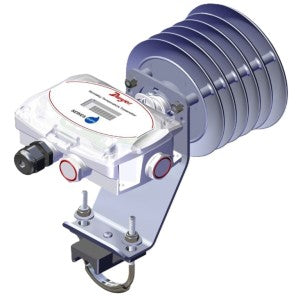

Dwyer RHPX-3LHAB-00 Hmd/temp Transmitter, Hdpe W/ Shield, Selectable Output, Type 2

Product Description

The DWYER RHPX-3LHAB-00 humidity and temperature transmitter accurately monitors humidity and temperature for building control. It maximizes occupant comfort and minimizes operating costs. Featuring capacitance polymer humidity sensors, models are available in 2% and 3% accuracies. An optional two-line alphanumeric LCD Display is available.

• Reduced installation costs with multiple on-board sensors
• Minimal maintenance with UV rated outdoor enclosures
• UL 2043 compliant allows installation into the plenum space

Product Highlights

The Series RHPX is an excellent choice for monitoring humidity and temperature in building energy management systems, commercial HVAC systems, clean rooms, museums, and data centers.

Product Information

Standard Information

• Brand: DWYER
• Manufacturer Part Number: RHPX-3LHAB-00

Technical Specifications

• Display: Available
• Enclosure Rating: IP66
• Application: Humidity
• Operating Temperature Range: -40F to 140F, -40C to 60C; with LCD: -4F to 140F, -20C to 60C
• Humidity Measurement Range: 0% to 100% humidity
• Temperature Measurement Range: -40F to 140F, -40C to 60C
• Resolution: Relative Humidity: 0.1%
• Resolution: Temperature: 0.1F/C
• Resolution: Absolute Humidity: 0.1 g/m3
• Humidity Analog Output: 4-20 mA or 0-5 VDC, 0-10 VDC at 5 mA max, field selectable
• Active Temperature Analog Output: 4-20 mA or 0-5 VDC, 0-10 VDC at 5 mA max, field selectable
• Power Requirements: Communications Model: 14 to 35 VDC or 10 to 32 VAC; Analog Model: 4-20mA: 10 to 35 VDC; Vout: 15 to 35 VDC or 15 to 29 VAC
• Wiring Connection: Removable terminal block
• Enclosure Material: UL 94 V-0
• Category: Humidity Sensor/Transmitter
• Manufacturer: Dwyer
• Component: Relative Humidity/Temperature Transmitter
