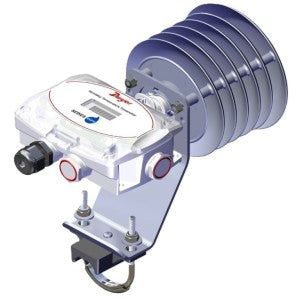

Dwyer RHPX-3LHAA-00 Hmd/Temp Transmitter, Hdpe w/ Shield, Selectable Output, Type 3

Product Description

The DWYER RHPX-3LHAA-00 humidity and temperature transmitter accurately monitors humidity and temperature for building control. It maximizes occupant comfort and minimizes operating costs. It features capacitance polymer humidity sensors and is available in 2% and 3% accuracies. It is an excellent choice for monitoring humidity and temperature in building energy management systems, commercial HVAC systems, clean rooms, museums, and data centers.

• Reduced installation costs with multiple on-board sensors
• Minimal maintenance with UV rated outdoor enclosures
• UL 2043 compliant allows installation into the plenum space

Product Highlights

The Series RHPX is easy to install with a removable terminal block, attached lid, and cable management. It can be configured to supply absolute or relative humidity or dew point in addition to enthalpy.

Product Information

Standard Information

• Brand: DWYER
• Manufacturer Part Number: RHPX-3LHAA-00

Technical Specifications

• Enclosure Rating: IP66
• Application: Humidity
• Operating Temperature Range: -40F to 140F, -40C to 60C; with LCD: -4F to 140F, -20C to 60C
• Humidity Measurement Range: 0% to 100% humidity
• Temperature Measurement Range: -40F to 140F, -40C to 60C
• Resolution: Relative Humidity: 0.1%
• Resolution: Temperature: 0.1F/C
• Resolution: Absolute Humidity: 0.1 g/m3
• Humidity Analog Output: 4-20 mA or 0-5 VDC, 0-10 VDC at 5 mA max, field selectable
• Active Temperature Analog Output: 4-20 mA or 0-5 VDC, 0-10 VDC at 5 mA max, field selectable
• Power Requirements: Communications Model: 14 to 35 VDC or 10 to 32 VAC; Analog Model: 4-20mA: 10 to 35 VDC; Vout: 15 to 35 VDC or 15 to 29 VAC
• Wiring Connection: Removable terminal block
• Enclosure Material: UL 94 V-0
• Component: Relative Humidity/Temperature Transmitter
• Manufacturer: Dwyer Instruments
• Brand: Dwyer
• MPN: RHPX-3LHAA-00
• Alternate Part #: 100821-00
