Dwyer RHPX-2SDAB-00 2% Humidity/Temperature Transmitter Duct Mount Selectable Output (Type 2)

Product Description

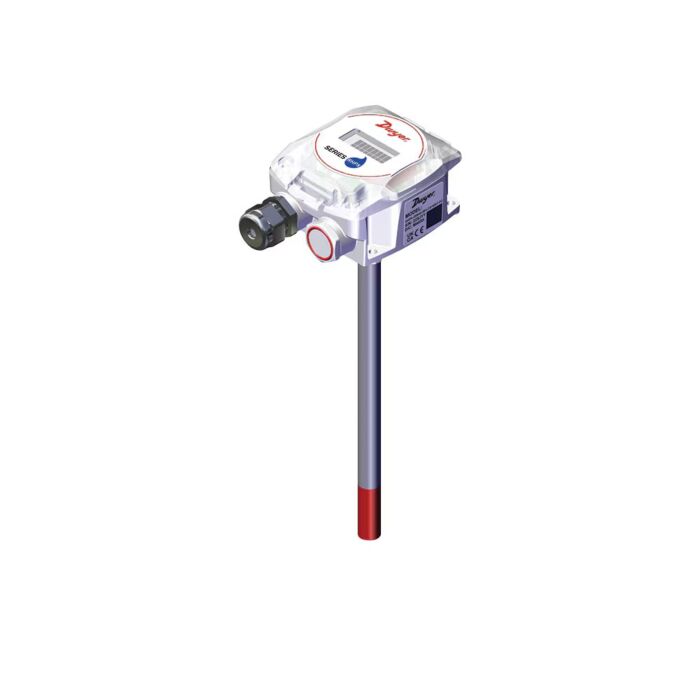

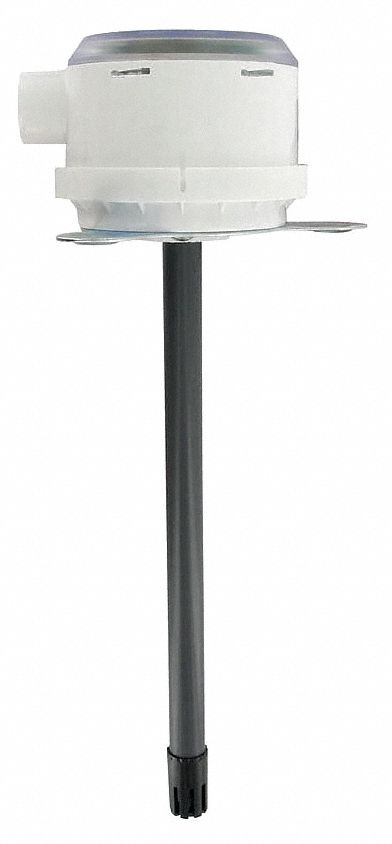

Dwyer RHPX-2SDAB-00 is a duct-mount humidity and temperature transmitter with 2% RH accuracy, designed to provide selectable analog outputs for building and HVAC control systems. It uses a capacitance polymer humidity sensor and a 10K Type II thermistor, offers field-selectable 4-20 mA or 0-5/0-10 V outputs, and supports absolute or relative humidity, dew point, or enthalpy outputs. The unit includes an IP66 enclosure and removable terminal block.

• 2% RH accuracy with capacitance polymer humidity sensor and 10K Type II thermistor for temperature
• Selectable analog outputs: 4-20 mA or 0-5 VDC or 0-10 VDC (field selectable); input power ranges per model
• Duct-mount design with plenum probe option, IP66/NEMA 4X enclosure, removable terminal block, and optional two-line LCD

Product Highlights

2% RH accuracy; field-selectable 4-20 mA/0-5 V/0-10 V outputs; duct-mount IP66 enclosure with plenum probe option

Product Information

Standard Information

• Brand: DWYER
• Manufacturer Part Number: RHPX-2SDAB-00
• Country of Origin: USA

Technical Specifications

• Brand: Dwyer
• Manufacturer Part Number: RHPX-2SDAB-00
• Accuracy: 2% RH
• Humidity Sensor Type: Capacitance polymer
• Temperature Sensor Type: 10000 ohm at 25 °C thermistor (Type II)
• Output Type: Field-selectable analog outputs: 4-20 mA or 0-5 VDC or 0-10 VDC
• Humidity Measurement Range: 0% to 100% RH
• Temperature Measurement Range: -40 °F to 140 °F (-40 °C to 60 °C)
• Resolution - Relative Humidity: 0.1%
• Resolution - Temperature: 0.1 °F/°C
• Absolute Humidity Resolution: 0.1 g/m3
• Temperature Accuracy: ±0.36 °F at 77 °F
• Power Requirements: Communications model: 14 to 35 VDC or 10 to 32 VAC; Analog model: 4-20 mA: 10 to 35 VDC; Vout: 15 to 35 VDC or 15 to 29 VAC
• Wiring Connection: Removable terminal block (screw terminals)
• Enclosure Rating: IP66 / NEMA 4X
• Enclosure Material / Flammability: Plastic enclosure with UL 94 V-0 flammability rating
• Mounting Type: Duct mount (plenum probe with hydrophobic filter option)
• Probe Length: 9 in
• Probe Diameter: 0.54 in
• Overall Length: 11.59 in
• Overall Width: 4.73 in
• Process Connection Size: 1/2 in
• Process Connection Type: 1/2 in NPS (conduit thread)
• Conduit Connection: 1/2 in NPS
• Response Time: 15 seconds
• Hysteresis: ±1%
• Optional Display: Optional two-line alphanumeric LCD
• Compliance / Certifications: UL 2043 compliant; CE; RoHS
• Electrical Connections: Screw terminals
• Applicable Applications: Building energy management, commercial HVAC, clean rooms, museums, data centers
