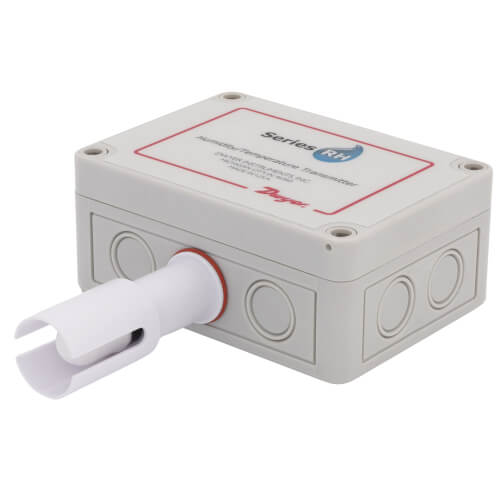

Dwyer RHP-2O1B Temperature and Humidity Transmitter 4-20 mA

Product Description

Dwyer RHP-2O1B combines advanced humidity and temperature measurement in one durable unit. Ideal for demanding HVAC systems and industrial environments.

• Durable polymer capacitance humidity sensor unaffected by condensation
• Integration of passive temperature output (thermistor or RTD)
• Display options with two-line alphanumeric LCD for duct mounted models

Product Highlights

Reliable and accurate measurement, featuring 2% humidity accuracy and temperature sensor type 10K @ 25 degrees Celsius thermistor. It supports operating temperatures from -40 to 140 degrees Fahrenheit and storage temperatures from -40 to 176 degrees Fahrenheit. The output signal is loop-powered 4-20 mA, requiring a power supply of 10-35 VDC.

Product Information

Standard Information

• Brand: Dwyer
• MPN: RHP-2O1B

Technical Specifications

• Humidity Accuracy: +/- 2% from 10 to 90% RH at 25 degrees Celsius
• Temperature Sensor: 10K @ 25 degrees Celsius Thermistor, Type II
• Electrical Connections: Screw Terminals
• Power Requirements: 10-35 VDC
• Output Signal: 4-20 mA
• Enclosure Rating: NEMA 4X
