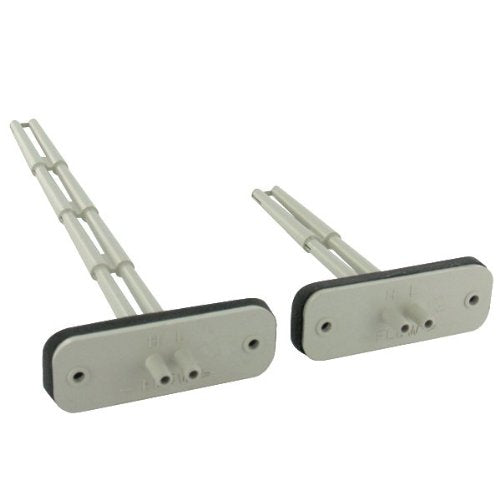

Dwyer PAFS-1004 Averaging Flow Sensor 7-21/32

Product Description

The Dwyer Instruments PAFS-1004 Averaging Flow Sensor is a precision tool designed for measuring airflow in various industrial applications. Featuring an insertion length of 7-21/32 inches, it is suitable for HVAC systems, process controls, and other airflow measurement needs.

• Measures differential pressure
• Stable and precise readings
• Rugged construction

Product Highlights

The PAFS-1004 sensor accurately measures airflow by averaging the readings from multiple sensing points, dampening fluctuations, and providing stable outputs. Ideal for use in duct systems and air volume terminal units.

Product Information

Standard Information

• Brand: Dwyer Instruments
• MPN: PAFS-1004

Technical Specifications

• Insertion Length: 7-21/32 inches
• Wetted Materials: ABS/polycarbonate
• Temperature Limits: Operating: 40 to 120 degrees Fahrenheit; Storage: -40 to 60 degrees Celsius
• Process Connection: 1/4 inch ID, 3/8 inch OD tubing
• Mounting Orientation: Integral flange with gasket
• K Factor: 1.46
• For Media: Air, Compatible Gases
• Flange Width: 1.25 inches
• Overall Length: 7.656 inches
• Airflow Sensor Type: General Purpose Airflow Sensor
• Connection Size: 1/4 ID or 3/8 OD Tubing
• Min/Max Operating Temperature: 40 to 120 degrees Fahrenheit
