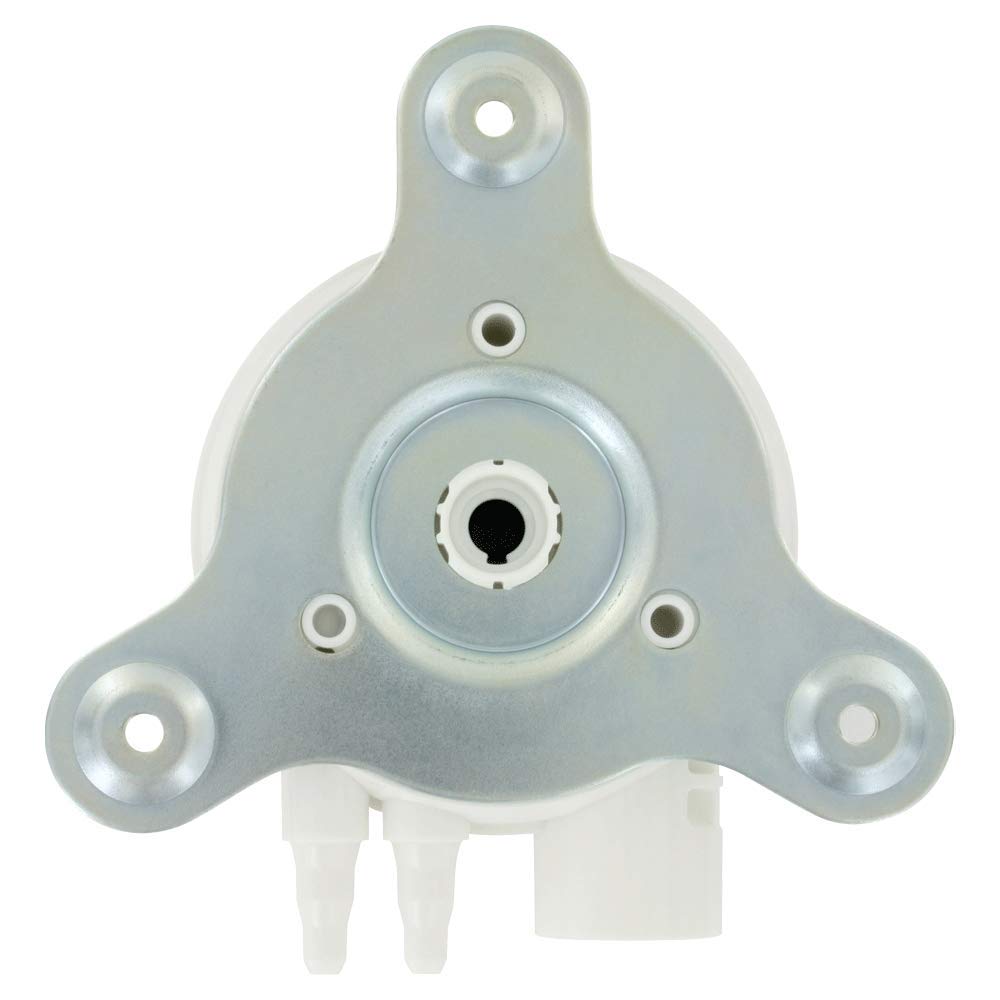

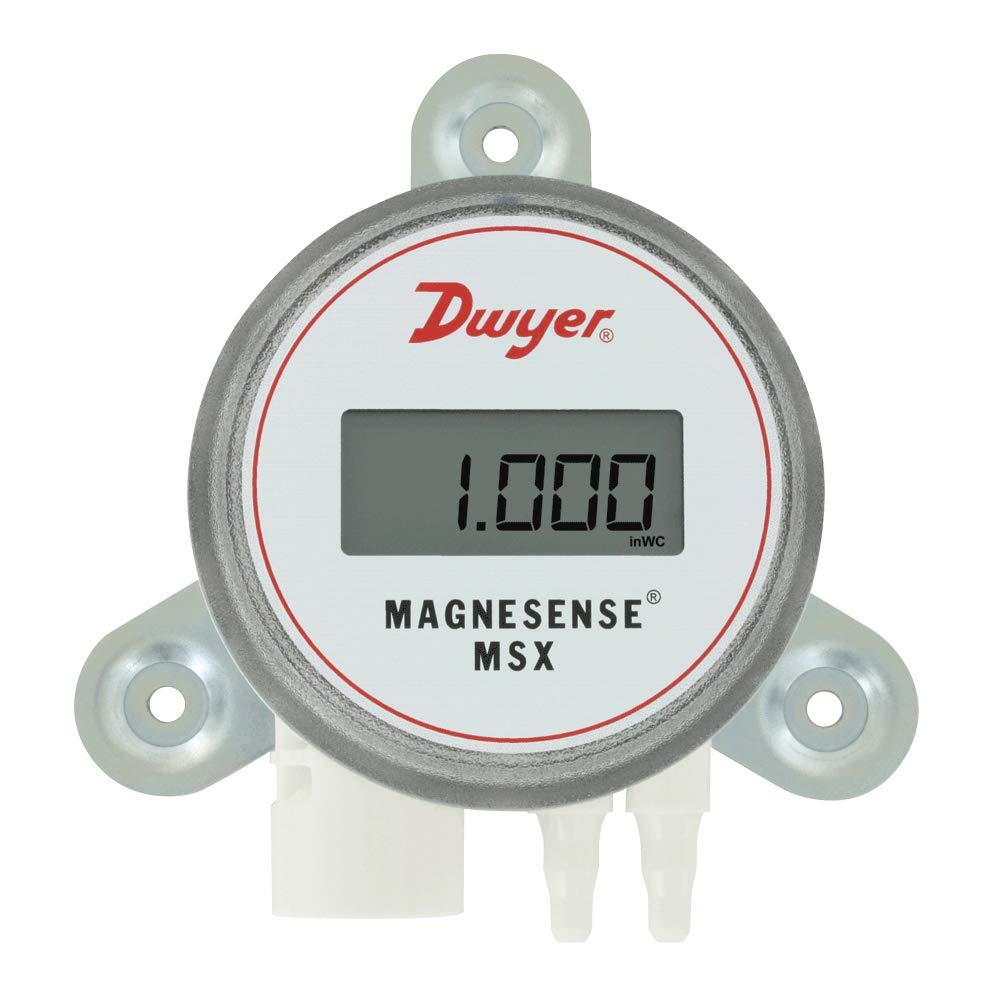

Dwyer MSX-W20-IN-LCD Differential Pressure Transmitter Wall Mount LCD Display

Product Description

The Dwyer MSX-W20-IN-LCD Differential Pressure Transmitter, MPN MSX-W20-IN-LCD, is designed to meet the needs of trade professionals. This transmitter offers stability and versatility, making it suitable for building control applications. The combination of its features simplifies the ordering process and reduces setup time.

• 32 configurable pressure ranges
• Dual voltage and milliamp output signals
• 4-digit LCD display for real-time readings

Product Highlights

The MSX-W20-IN-LCD is ideal for applications including filter monitoring, building pressure, duct static pressure, and air velocity/flow. Its features like a rotatable display and UL94 V-0 ratings add ease of use and safety. The transmitter can handle a variety of gases with high accuracy and stability.

Product Information

Standard Information

• Brand: Dwyer
• MPN: MSX-W20-IN-LCD

Technical Specifications

• Accuracy: ±1% FSO
• Stability: ±1% FSO/year
• Temperature Limits: -4 to 158 degrees Fahrenheit
• Power Requirements: 10-36 VDC (2-wire), 17-36 VDC or isolated 21.6-33 VAC (3-wire)
• Output Signals: 4-20 mA (2-wire); 0-10 V or 0-5 V selectable (3-wire)
• Response Time: Instantaneous (default) or 3 seconds (selectable)
• Zero and Span Adjustments: Digital push-button
• Enclosure Rating: NEMA 4X (IP66), UL 2043 (Plenum), UL94 V-0
