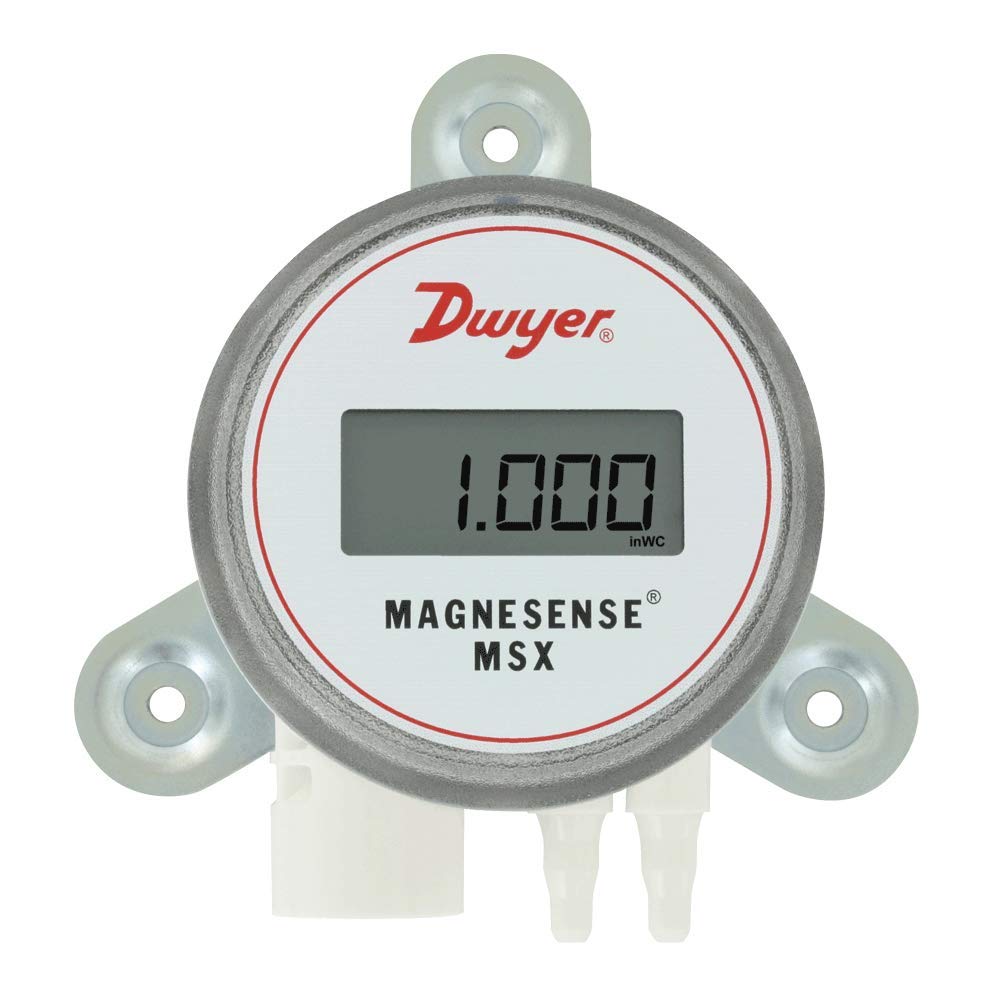

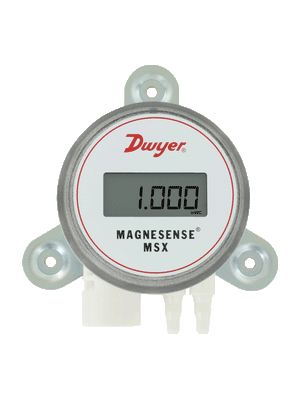

Dwyer MSX-W10-IN-LCD Differential Pressure Transmitter LCD

Product Description

The Dwyer MSX-W10-IN-LCD Differential Pressure Transmitter is designed for accurate monitoring of pressure and air velocity. This transmitter, featuring a built-in LCD, offers reliable performance in various industrial applications.

• Applications: HVAC systems, clean rooms, industrial processes, medical facilities.
• Features: 4-20 mA output, IP65 rated, digital display, accurate and reliable.
• Benefits: Easy integration, durable design, real-time monitoring.

Product Highlights

This transmitter is suited for demanding environments with its weather-resistant construction and versatile pressure range capabilities.

Product Information

Standard Information

• Brand: Dwyer
• Model: MSX-W10-IN-LCD

Technical Specifications

• Output Signal: 4-20 mA
• Pressure Range: -10 to +10 inches wc
• Display Type: 4-digit LCD
• Accuracy: ±1% FSO
• Enclosure Rating: IP65
• Temperature Limits: -4 to 158°F
• Power Requirements: 10-36 VDC (2-wire), 17-36 VDC or 21.6-33 VAC (3-wire)
• Zero and Span Adjustments: Digital push-button
