Product Description

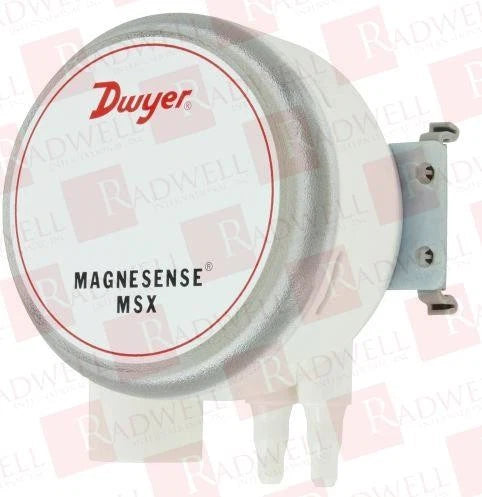

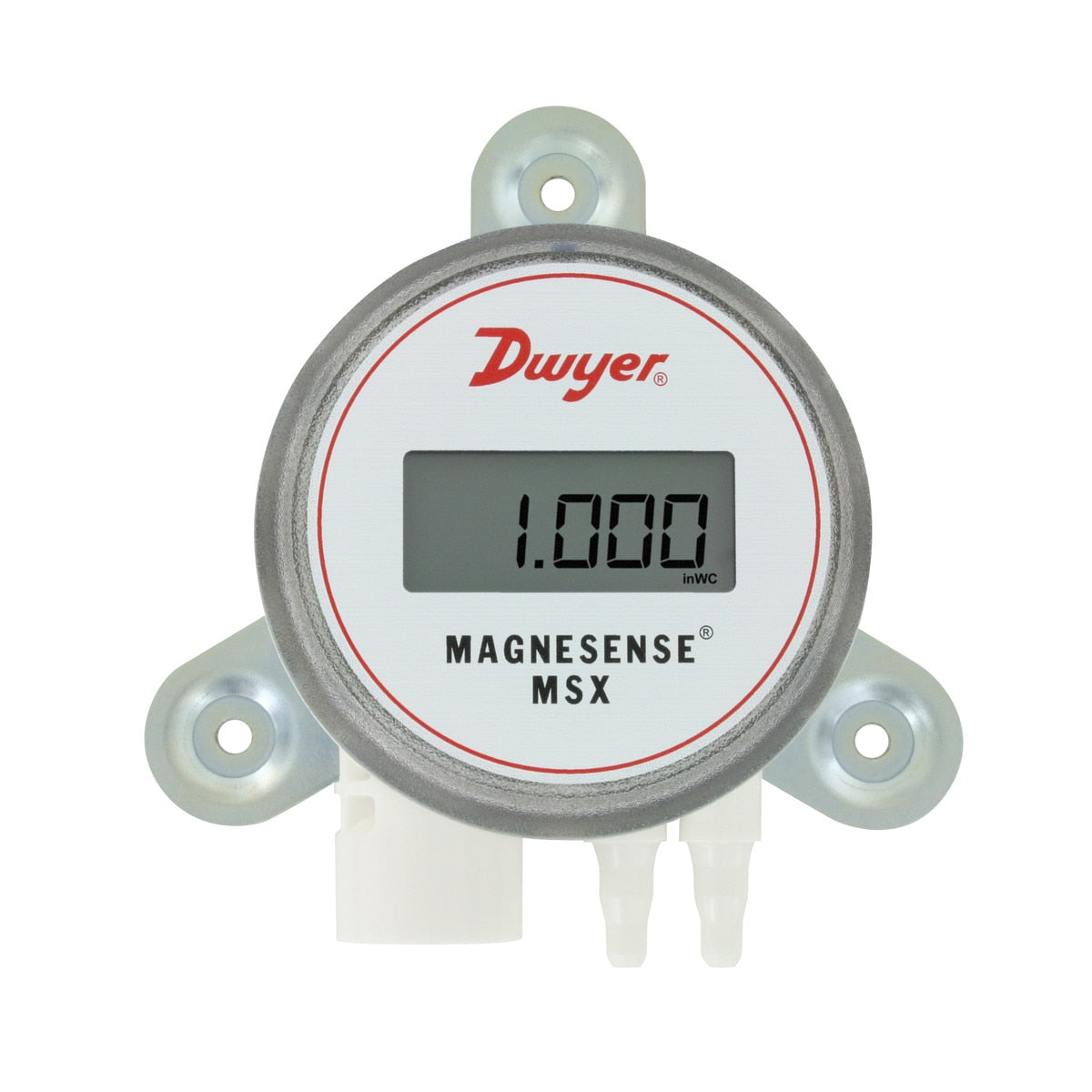

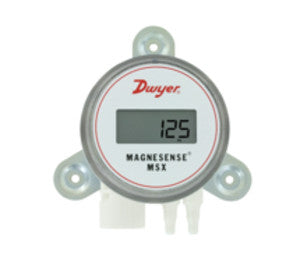

The Dwyer MSX-U12-IN Magnesense Differential Pressure Transmitter is designed for stability and versatility in building control applications. This transmitter streamlines the ordering process to provide a specific configuration, which helps in reducing setup time. It supports both linear pressure and velocity output, including square root extraction for flow calculations.
- Field selectable current and voltage output signals.
- Digital push-button enables zero and span adjustments.
- Rotatable display for easy reading of values.
Product Highlights
The Dwyer MSX-U12-IN is suitable for various applications due to its compatibility with multiple gases and robust design.
Product Information
Standard Information
-
Brand: Dwyer
-
MPN: MSX-U12-IN
Technical Specifications
-
Measurement Pressure Type: Differential
-
Operating Pressure Min: 0 Inch-H2O
-
Operating Pressure Max: 5 Inch-H2O
-
Accuracy: ±1% FSO
-
Long Term Stability: ±1% FSO/year
-
Media Compatibility: Air, Argon, Carbon Dioxide, Helium, Nitrogen, Non-Conductive Gases, Non-Corrosive Dry Gases
-
Response Time: 3 s
-
Supply Voltage: 10 to 36 Vdc (2-Wire), 17 to 36 Vdc/21.6 to 33 Vac (3-Wire)
-
Output Signal: Current, Voltage
-
Electrical Output: 4 to 20 mA, 0 to 5 Vdc, 0 to 10 Vdc
-
Loop Resistance: Current Output: 0 to 1250 Ω max, Voltage Output: Load resistance 1 kΩ min.
-
Power Consumption: max 21 mA
-
Operating Temperature Min: -20 °C
-
Operating Temperature Max: 70 °C
-
Enclosure Rating: IP66, NEMA Type 4X, UL94 V-0, UL 2043 (Plenum)
-
Process Connection Size: 1/8 in, 3/16 in, 1/4 in
-
Process Connection Type: Stepped Barb Fitting
-
Electrical Connection: 1/2 in NPS female Conduit with Screw Terminal block
-
Weight: 230 g
-
Mounting Note: Not Position Sensitive
-
Zero Setting Adjustable Range: Digital push-button
-
Electrical Entry: 1/2 in NPS thread
-
Process Variable: Differential Pressure
-
Mounting Orientation: Pressure sensor measurement unaffected by orientation
