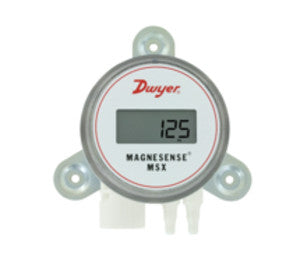

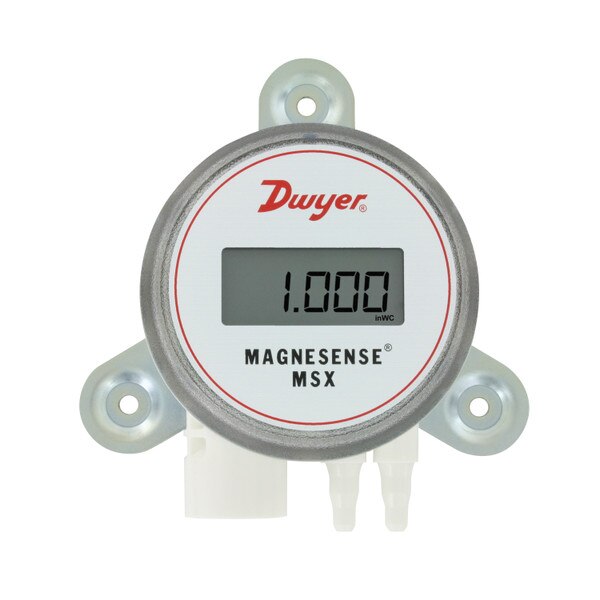

Dwyer MSX-U12-IN-LCD Magnesense Differential Pressure Transmitter

Product Description

The Dwyer MSX-U12-IN-LCD is a differential pressure transmitter designed for applications in building control. This transmitter measures differential pressure and provides output signals in both current and voltage formats. It features field-selectable ranges and can be adjusted for unidirectional or bidirectional measurement modes. Installation is flexible, with options for duct or wall mounting, and it includes a four-digit LCD display for easy local monitoring.

• Field-selectable pressure measurement ranges
• Four-digit LCD display for clear current reading
• NEMA 4X rated enclosure suitable for harsh environments

Product Highlights

This differential pressure transmitter is ideal for HVAC systems and maintenance applications, ensuring reliable performance.

Product Information

Standard Information

• Brand: Dwyer
• Application: Building Control, HVAC

Technical Specifications

• Measurement Range: 0 - 5 in WC
• Output Signals: Current (4 to 20 mA), Voltage (0 to 5 Vdc, 0 to 10 Vdc)
• Supply Voltage: 10 to 36 Vdc
• Accuracy: ±1% FSO
• Operating Temperature: -20 °C to 70 °C
• Enclosure Rating: NEMA 4X (IP66)
• Weight: 230 g
• Mounting Options: Wall or duct mount
