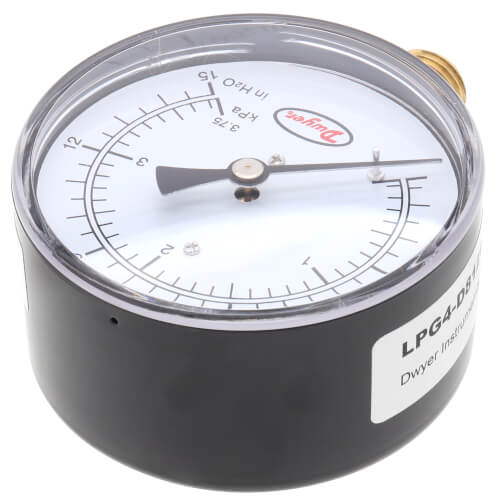

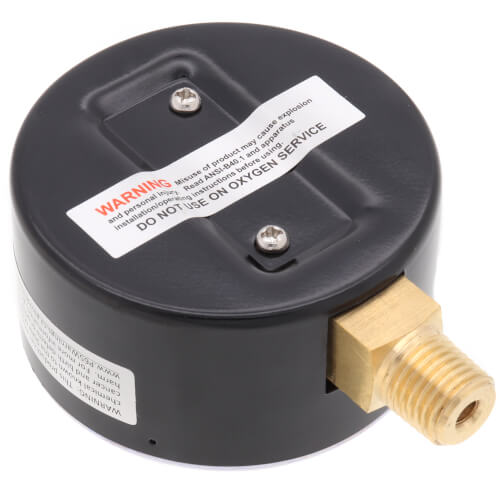

Dwyer LPG4-D8122N 2.5 Low Pressure Gauge 0-15 WC 1/4 NPT Bottom Mount

Product Description

The Dwyer LPG4-D8122N 2.5 Low Pressure Gauge is designed for precision in low-pressure measurement. This gauge is perfect for use in HVAC systems and industrial processes. Built with durability and accuracy in mind, it features a beryllium-copper diaphragm and brass construction.

• Measures pressures from 0 to 15 inches water column (WC)
• 1/4-inch male NPT bottom connection
• Rugged brass and beryllium copper construction

Product Highlights

This pressure gauge offers reliable readings and is suitable for challenging environments. It's ideal for monitoring HVAC systems, gas lines, and more.

Product Information

Standard Information

• Brand: Dwyer
• MPN: LPG4-D8122N

Technical Specifications

• Range: 0 to 15 WC (0 to 3.75 kPa)
• Process Connection: 1/4 male NPT
• Temperature Limits: Process: -40 to 160°F; Ambient: -40 to 140°F
• Materials: Wetted: Brass and beryllium copper; Housing: Drawn steel, black finish; Lens: Polycarbonate (removable)
• Accuracy: +/-1.5% FS
• Size: 2.5 (63 mm)
• Enclosure Rating: NEMA 3 (IP54)
• Weight: 0.46 lbs
