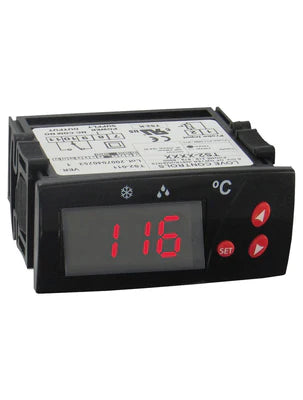

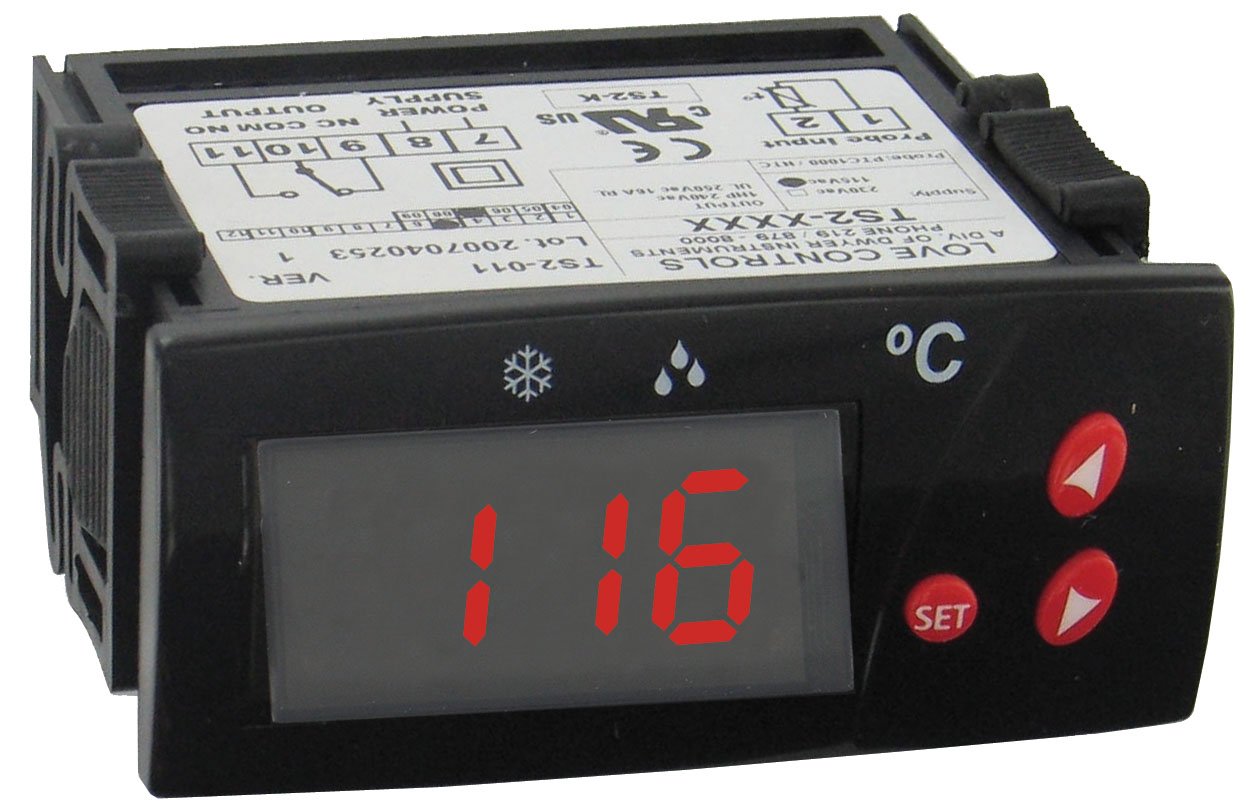

Dwyer TS2-010 Digital Temperature Switch 110V SPDT Red Display

Product Description

The Dwyer TS2-010 Digital Temperature Switch, engineered for effective temperature management in various applications, incorporates SPDT relay output suitable for heating and cooling operations. A distinct feature of this model is its programmable functions and easy configuration, aimed at optimizing performance in industrial environments.

• Red display for clear visibility.
• Operating range from -58 to 302 degrees Fahrenheit, adaptable to diverse settings.
• Robust SPDT relay output handling up to 16 amps, ensuring reliable operation.

Product Highlights

Complete with a three-digit red display, the Dwyer TS2-010 provides excellent readability. It features a comprehensive programmable functionality allowing temperature range and operational flexibility tailored to specific applications. The nonvolatile memory maintains configurations irrespective of power status.

Technical Specifications

• Part Number: TS2-010
• Color: Red
• Terminal Type: SPDT
• Current Rating: 16 Amps
• Operating Voltage:: 250 Volts
• Upper Temperature Rating: 150 Degrees Celsius
• International Protection Rating:: IP54
