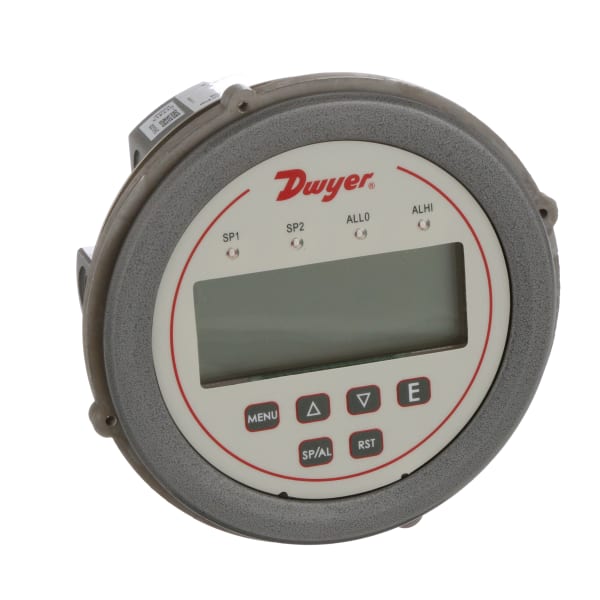

Dwyer DH3-005 Digihelic Differential Pressure Controller

Product Description

Dwyer's model DH3-005 Digihelic Differential Pressure Controller is an advanced instrument designed for pressure, velocity, and flow applications in a variety of industries. Combining functionality of a digital display gauge, control relay switches, and a transmitter, this device simplifies monitoring and control systems.

• Integrates digital display, relay switches, and transmitter.
• Applicable for pressure, velocity, and flow measurements.
• Supports adjustable set points and alarms for versatile use.

Product Highlights

This DH3-005 model from Dwyer offers 1% full-scale accuracy for low ranges and 0.5% for ranges above 5 inches water column. It features bi-directional capabilities and is equipped with two SPDT control relays. Engineered for flexibility, it includes a scalable 4-20 mA output and easy menu-driven programming.

Product Information

Technical Specifications

• Model: DH3-005
• Accuracy: 1% FS low ranges, 0.5% FS >5inch WC
• Control Relays: Two SPDT with adjustable deadbands
• Output: 4-20 mA scalable
• Display: 4 Digit LCD
• Power Requirements: 12 to 28V DC, 12 to 28V AC
• Process Connection: 1/8 inch ID Tubing
• Mounting: Fits 4-3/4 inch Round Cut Out
