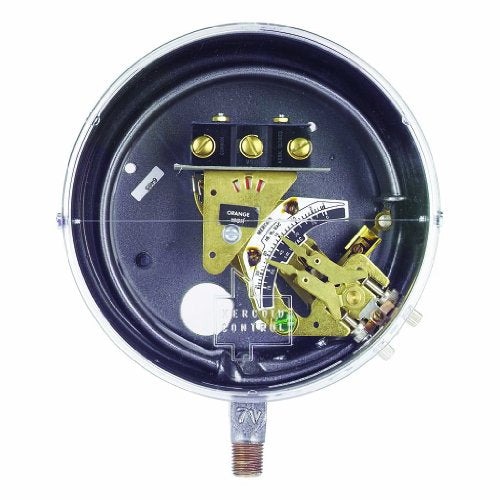

Dwyer DA-31-153-6 Brass Bourdon Tube Pressure Switch SPDT

Product Description

Dwyer's DA-31-153-6 is a robust Brass Bourdon Tube Pressure Switch designed to accommodate a range of 5 to 100 psig. It offers precise control with a minimal deadband, ideal for various industrial applications.

• Adjustable dual external settings for setting high and low-pressure points
• SPDT configurations available with snap action or hermetically sealed options
• Designed for reliability with a pressure repeatability of +/-1%

Product Highlights

This pressure switch features a visible calibrated dial for easy monitoring and adjustable deadbands to suit user-specific requirements. It is suitable for general purpose, weatherproof, or explosion-proof installations, making it versatile for diverse environments.

Product Information

Standard Information

• Enclosure Type: Available in general purpose, weatherproof, and explosion-proof
• Electrical Connection: Screw terminal with options for 1/2inch or 3/4inch conduit connections

Technical Specifications

• Operating Pressure Range: 5 to 100 psig
• Temperature Limit: 180 degrees Fahrenheit
• Electrical Rating: Detailed in the product's electrical ratings chart
• Mounting Orientation: Vertical
• Process Connection: 1/4inch and 1/2inch male NPT available
• Set Point Adjustment: Thumbscrew manipulation
• Weight: Varies based on enclosure type
