Dwyer 616KD-00 Differential Pressure Transmitter 0-1 Inch WC One-Touch Calibration

Product Description

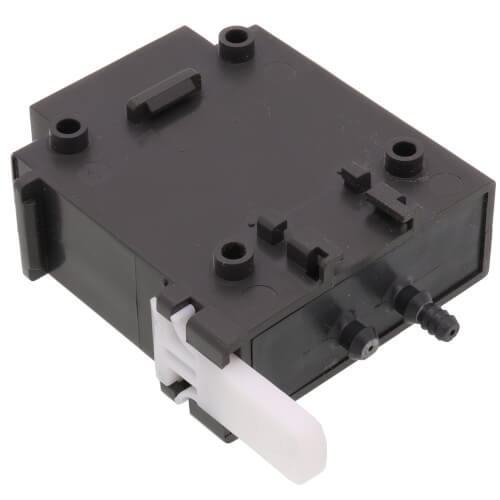

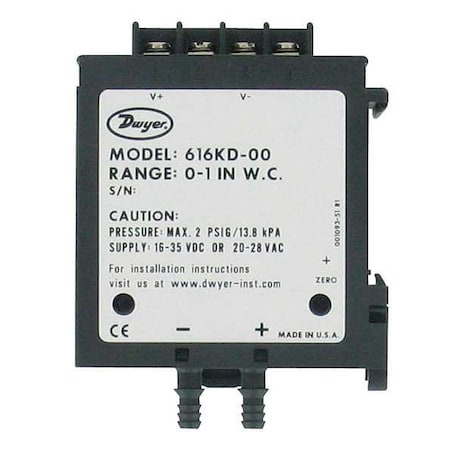

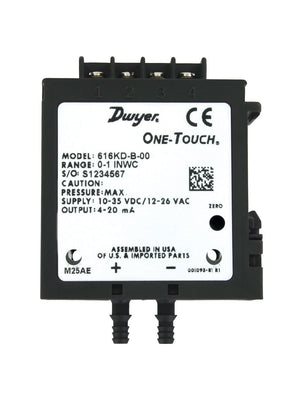

The Dwyer 616KD-00 Differential Pressure Transmitter is engineered for precise air pressure measurement and offers unmatched ease of use with its One-Touch technology, making it perfect for HVAC and other industrial applications. Designed by Dwyer Instruments, this transmitter ensures reliability and accuracy in measuring pressures between 0 to 1 inch water column (WC).

• Manufacturer direct with simple One-Touch calibration
• Output Signal: 4 to 20 mA
• Temperature operation range from 32 to 122 degrees Fahrenheit

Product Highlights

This transmitter is known for its cost-effectiveness and simplistic design, reducing both initial setup and long-term maintenance costs. It operates efficiently within a temperature range of 32 to 122°F and accommodates pressures up to 2 psi.

Product Information

Standard Information

• Power Source: 16 to 35 VDC
• Enclosure Type: NEMA 1

Technical Specifications

• Pressure Range: 0-1 Inch WC
• Loop Resistance: 1000 Ohm DC, 1200 Ohm AC
• Current Consumption: 21 mA
• Electrical Connection: Screw-Type Terminal Block
