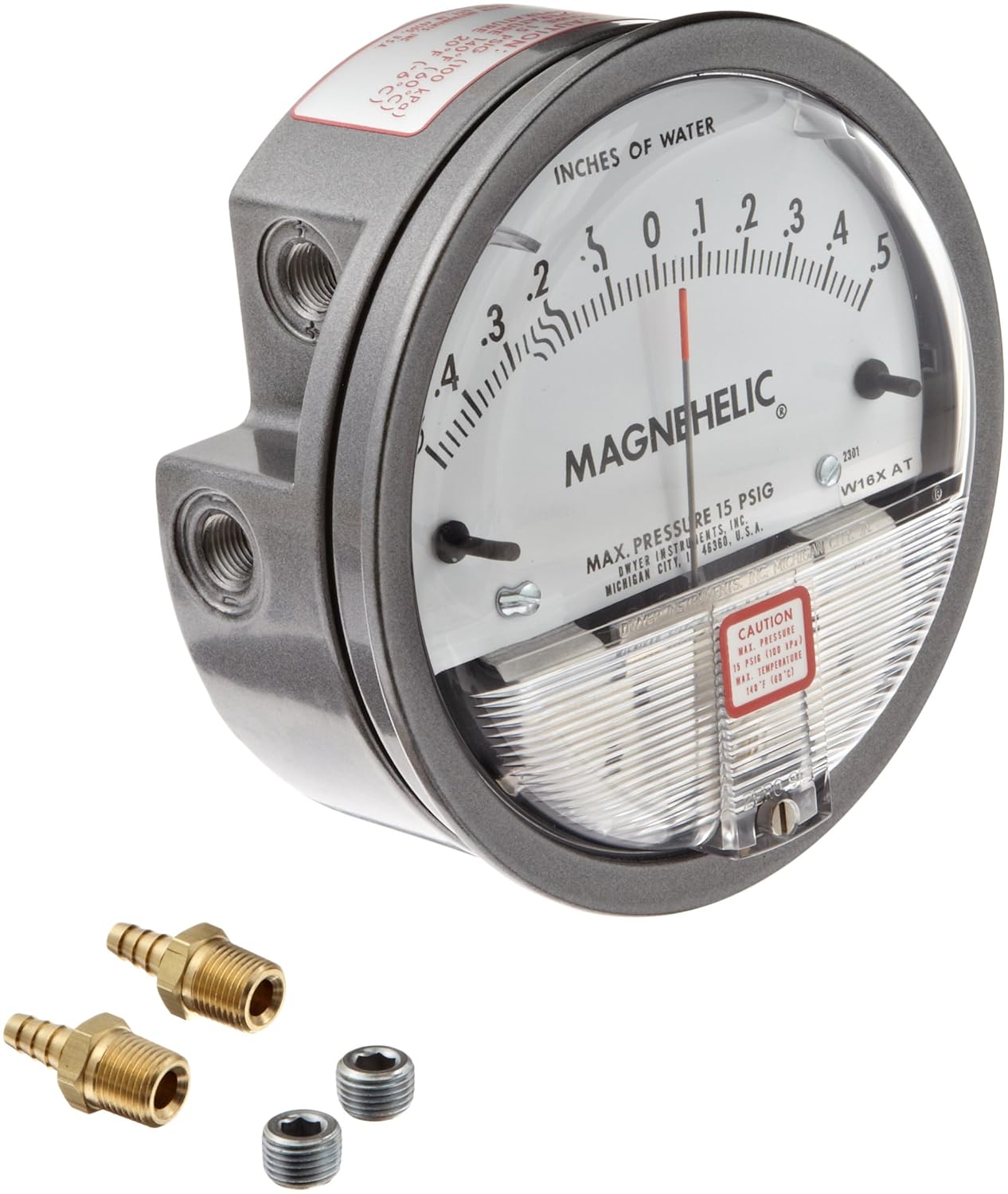

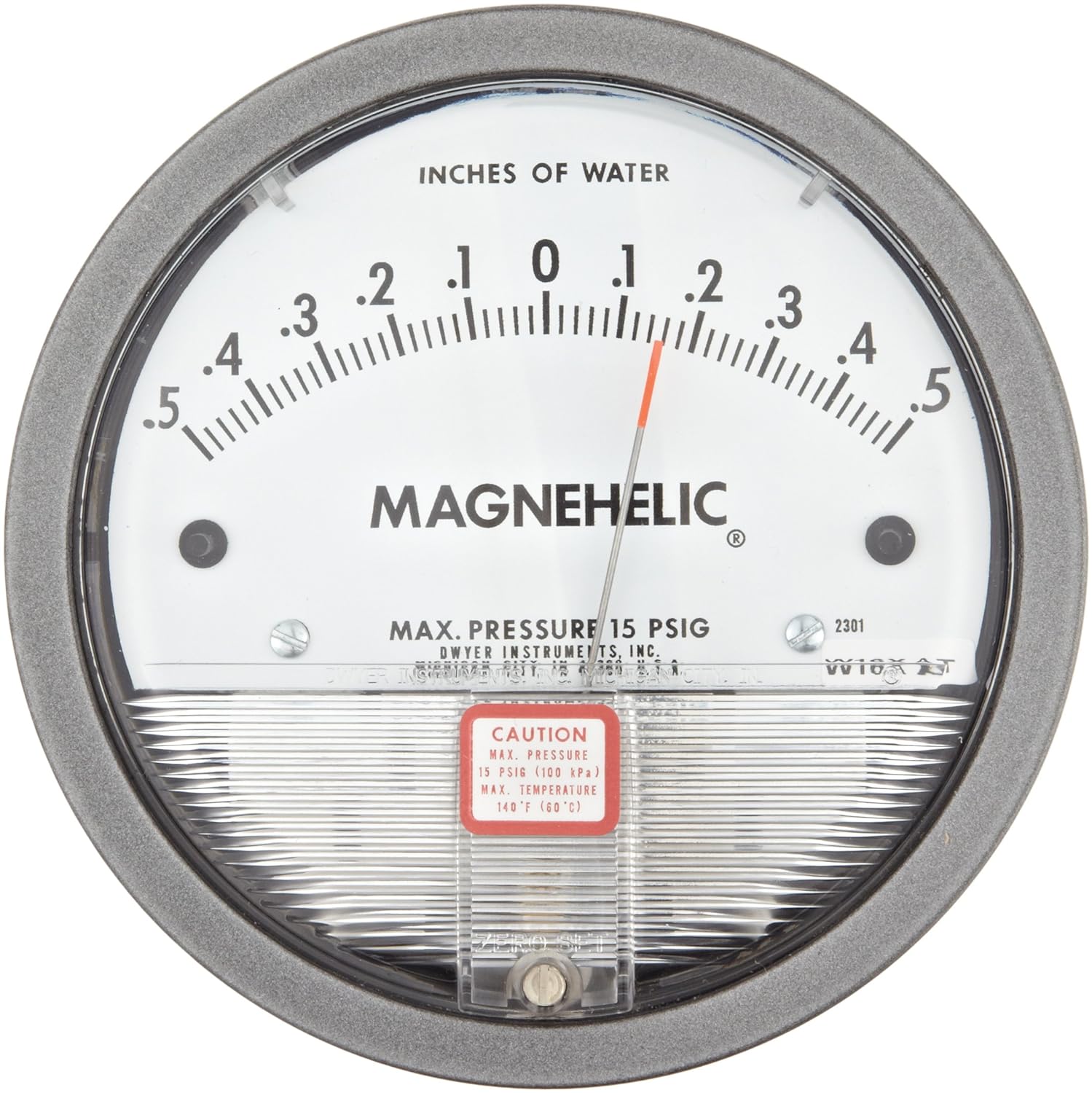

Dwyer 2301 Magnehelic Series 2000 Differential Pressure Gauge, Range 0.5-0-0.5WC

Product Description

The Dwyer 2301 Magnehelic Differential Pressure Gauge measures differential pressure in industrial applications. This model operates within a range of negative zero point five to zero point five inches of water column. It is suitable for HVAC pressure monitoring, airflow measurement, and filtration monitoring.

• Measurement range of -0.5 to 0 to 0.5 inches of water column
• Magnetic coupling for precise readings
• Compact design for easy installation

Product Highlights

This gauge is designed for accuracy and longevity in industrial environments. It fits in small spaces and has a robust construction to withstand wear.

Product Information

Standard Information

• Brand: Dwyer Instruments
• MPN: 2301

Technical Specifications

• Measurement Range: -0.5 to 0 to 0.5 inches of water column
• Dial Size: 4.5 inches
• Connection Type: FNPT
• Weight: 1 pound
• Operating Temperature: 20 to 140 degrees Fahrenheit
• Housing Material: Die cast aluminum
• Accuracy: +/-2%
• Panel Mountable: Yes
