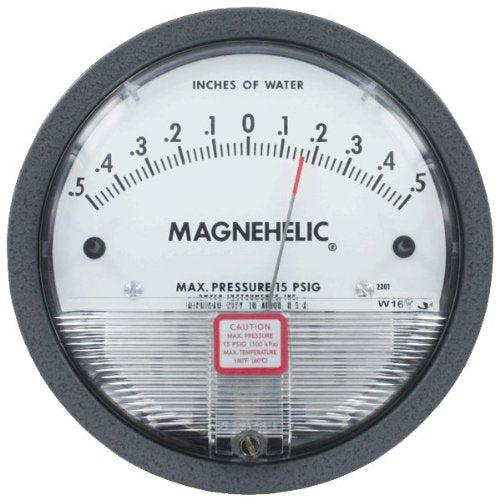

Dwyer 2300-00 Magnehelic Differential Pressure Gauge

Product Description

The Dwyer Magnehelic Differential Pressure Gauge, model 2300-00, offers precise monitoring for air and non-corrosive gas pressures. This industry-standard gauge is utilized extensively in HVAC applications, providing critical data with high accuracy within 2% of full scale.

• Guaranteed accuracy within 2% of full scale
• Frictionless gauge movement enables rapid response
• Shock and vibration resistant with no liquid fill issues

Product Highlights

This gauge is widely recognized for its reliability and durability in varied industrial, health, and research sectors. It operates efficiently under temperature ranges from 20 to 140 degrees Fahrenheit and can handle pressures from -20 inHg to 15 psig.

Product Information

Standard Information

• Brand: Dwyer Instruments
• Model: 2300-00

Technical Specifications

• Service: Air and non-combustible, compatible gases
• Pressure Limits: -20 inHg to 15 psig
• Temperature Limits: 20 to 140°F
• Mounting Orientation: Diaphragm in vertical position
• Process Connections: 1/8 inch female NPT duplicate high and low pressure taps - one pair side and one pair back
