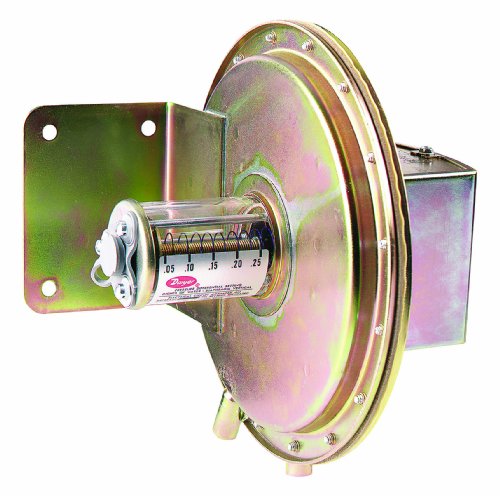

Dwyer 1638-5 Large Diaphragm Differential Pressure Switch 2.0-6.0 Inch WC

Product Description

The Dwyer 1638-5 Differential Pressure Switch offers high precision in detecting pressure differences between 2.0 to 6.0 inch WC, tailored for air conditioning and general industrial services. This reliable model, approved by UL, CSA, and FM, is ideal for a variety of applications.

• Compatible with air and non-combustible gases.
• Continuous pressure up to 10 psig; surge up to 25 psig.
• Equipped with a single-pole double throw (SPDT) switch type.

Product Highlights

This switch includes three screw-type electrical connections for simplicity in setups. Its robust design ensures long-lasting usuage in harsh settings.

Product Information

Standard Information

• Electrical Load Handling: 15 amps for varied minor electrical loads.
• Visibility: Visible set point indicator enhances convenience.

Technical Specifications

• Repeatability: ±1% precision.
• Pressure Range: 0 to 6 inch WC.
• Differential Range: 0.5 to 6 inch WC.
• Adjustable Deadband: 1.5 inch WC.
