Dwyer IEF-SN-CND-COM Insertion Electromagnetic Flow Transmitter Standard Accuracy 4 to 36 inches pipe 1% Full-Scale

Product Description

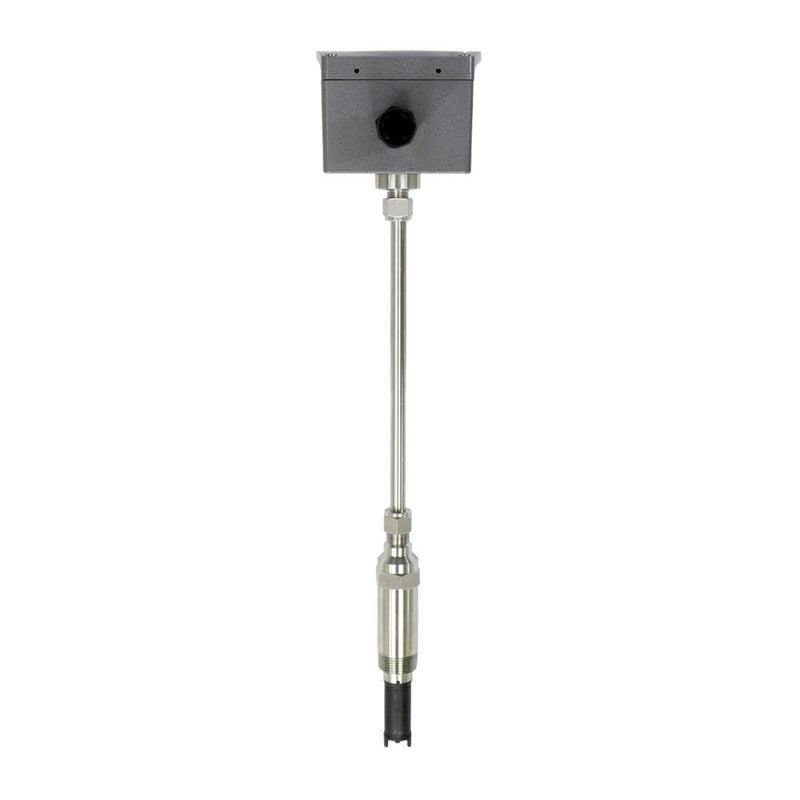

The Dwyer IEF-SN-CND-COM is an insertion electromagnetic flow transmitter designed for measuring fluid velocity. This device accommodates pipe sizes from four to thirty-six inches. It offers precision with a standard accuracy of one percent full-scale. The flow transmitter supports BACnet MS/TP and Modbus RTU communication protocols.

• Flexible installation options for integral or remote displays.
• Maintains high accuracy across varying conditions including temperature and viscosity.
• Simple setup wizard ensures quick and easy configuration.

Product Highlights

This transmitter is suitable for clean and dirty conductive liquids and provides continuous signal outputs, making it ideal for various industrial applications.

Product Information

Standard Information

• Brand: Dwyer
• Manufacturer Model: IEF-SN-CND-COM

Technical Specifications

• Communication Options: BACnet/Modbus
• Max Pressure: 400 psi
• Electrical Connection: 1/2 inch Female NPT
• Connection Size: 1 inch Male NPT
• Accuracy: ±1% FS
• Pipe Size: 4 to 36 inches
• Supply Voltage: 24 VAC, 24 VDC
• Max Temperature: 250 °F
• Fluid Service: Compatible with clean or dirty conductive liquids
• Flow Range: 0 to 20 ft/s
• Wetted Materials: 316 stainless steel, silicone O-ring
• Temperature Limits: Ambient -20 to 160 °F, Process 15 to 250 °F
• Process Connection: 1 inch NPT or BSPT

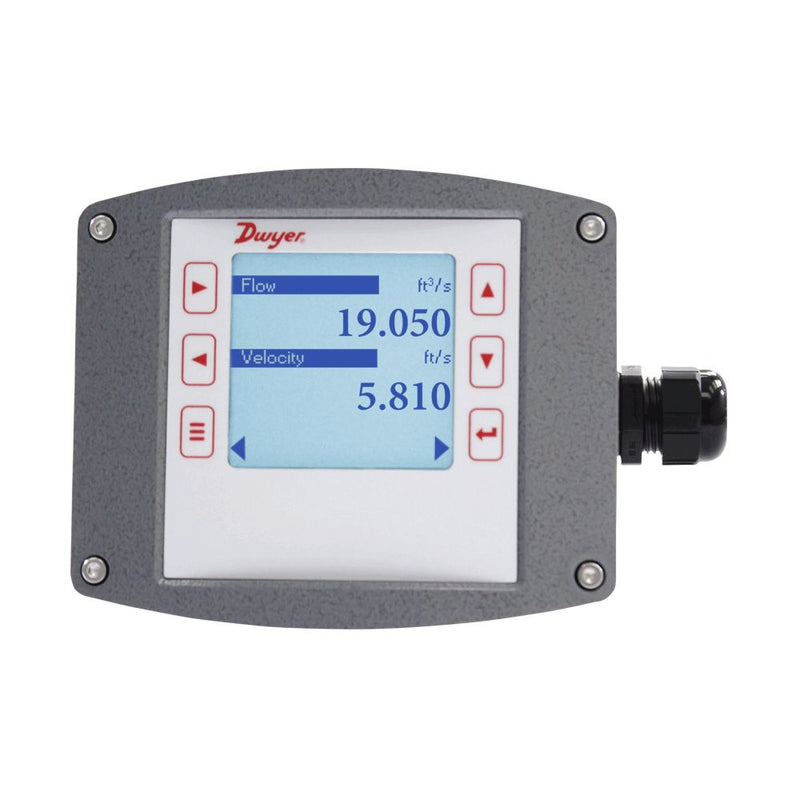

• Model Display Option: 2 inch graphic LCD with backlight
• Enclosure Material: Powder coated die cast aluminum
• Warranty: 2 years limited
