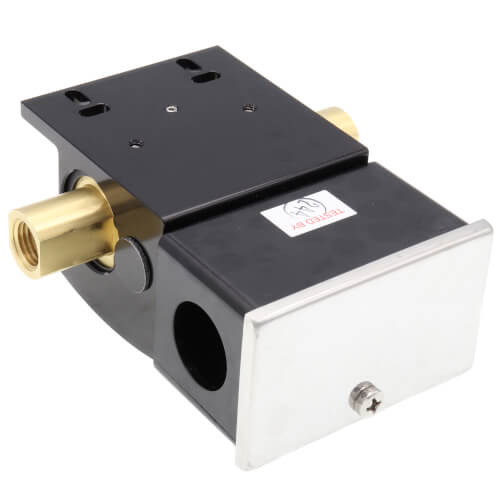

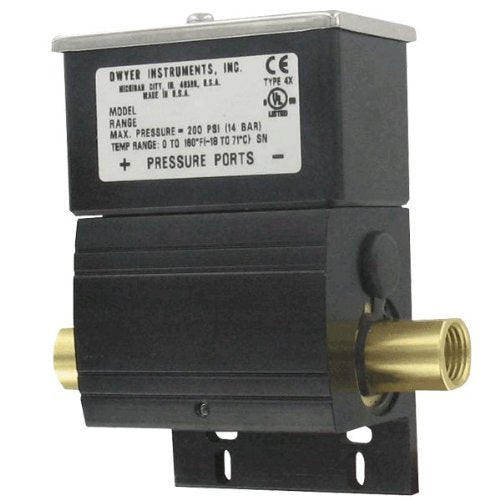

Dwyer DXW-11-153-2 Wet/Wet Differential Pressure Transmitter NEMA 4X 1/4 Inch NPT 10-25 PSI

Product Description

The Dwyer DXW-11-153-2 is a robust and reliable differential pressure switch suitable for a wide range of industrial and scientific applications. Manufactured by Dwyer Instruments, this switch is designed to provide accurate pressure readings in harsh environments.

• Weatherproof NEMA 4X enclosure suitable for outdoor or industrial environments.
• Pressure range capability from 10 to 25 PSI for versatile applications.
• Includes brass and fluoroelastomer wetted materials compatible with most gases and water-based solutions.

Product Highlights

Offered with an externally adjustable set point and a static pressure rating up to 200 psig, the Dwyer DXW-11-153-2 delivers both flexibility and performance. The switch is especially good for monitoring pressure changes in filters, pumps, and HVAC systems thanks to its SPDT switch configuration.

Product Information

Standard Information

• Brand: Dwyer Instruments
• Model: DXW-11-153-2

Technical Specifications

• Service: Compatible with gases and liquids
• Temperature Limits: 30 to 140°F
• Pressure Limits: Maximum static 200 psig; maximum differential 1.25 times the highest set point
• Enclosure: Weatherproof UL type 4X (IP65)
• Electrical Rating: 5A at 125/250 VAC, 5A res. at 30 VDC
• Process Connection: 1/4 inch NPT female
• Mounting Orientation: Horizontal plane, ±10°
• Weight: 1.3 pounds
