Dwyer Dwyer-2020 Magnehelic differential pressure gauge 0-20 inches W.C. (4 inches dial) 2020

Product Description

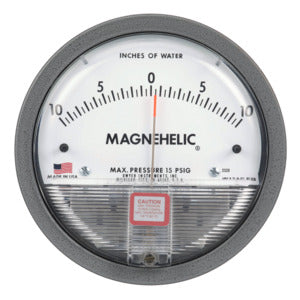

Dwyer DWYER-2020 Magnehelic differential pressure gauge measures air and compatible noncorrosive gas pressures across a 0-20 in. W.C. range. The instrument indicates positive, negative and differential pressure with a frictionless magnet-driven helix and a silicone rubber diaphragm. It provides a 4 in. precision litho-printed dial, panel-mount bezel, IP67 enclosure rating, and overpressure relief for common HVAC, filter monitoring, duct pressure, blower and cleanroom applications.

• 0-20 in. W.C. measurement range with 4 in. dial, precision litho-printed scale and red-tipped pointer
• Die-cast aluminum case with acrylic/plastic cover, IP67 enclosure rating and blowout relief plug for overpressure protection
• Samarium cobalt magnet-driven helix, jeweled bearings with silicone fluid damping, silicone rubber diaphragm and zero adjustment; 1/8 in. female NPT process connections

Product Highlights

Differential pressure gauge for air and noncombustible gases; 0-20 in. W.C. range, 4 in. dial, IP67 enclosure, optional -HA high accuracy (1% FS).

Product Information

Standard Information

• Brand: DWYER
• Manufacturer Part Number: DWYER-2020

Technical Specifications

• Brand: Dwyer
• Manufacturer Part Number: DWYER-2020
• Model: 2020
• Series: 2000 Series
• Type: Differential pressure gauge (Magnehelic)
• Range: 0-20 in. W.C.
• Dial Diameter: 4 in. (101.6 mm)
• Enclosure Rating: IP67
• Operating Temperature: 20 to 140°F (-6.67 to 60°C); -20°F (-28°C) with low temperature option
• Accuracy: ±2% of full scale (varies by model); High Accuracy (-HA) option: 1% of full scale
• Pressure Limits: -20 in. Hg to 15 psig (standard); MP option: 35 psig; HP option: 80 psig
• Overpressure Protection: Blowout relief plug (opens ~25 psig) on standard models; blowout plug on rear for specified models
• Process Connections: 1/8 in. female NPT duplicate high and low pressure taps (side and back)
• Mounting Orientation: Diaphragm in vertical position; bezel provides flange for flush panel mounting
• Housing: Die-cast aluminum case and bezel; acrylic/plastic cover; corrosion-resistant finish (168 hour salt spray)
• Service (Applicable Media): Air and noncombustible compatible gases (may be used with hydrogen)
• RoHS Compliance: Yes
• UPC: 094700700001
