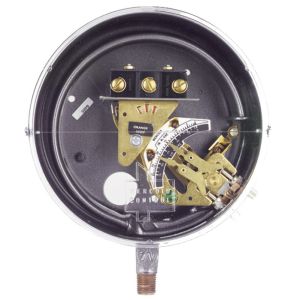

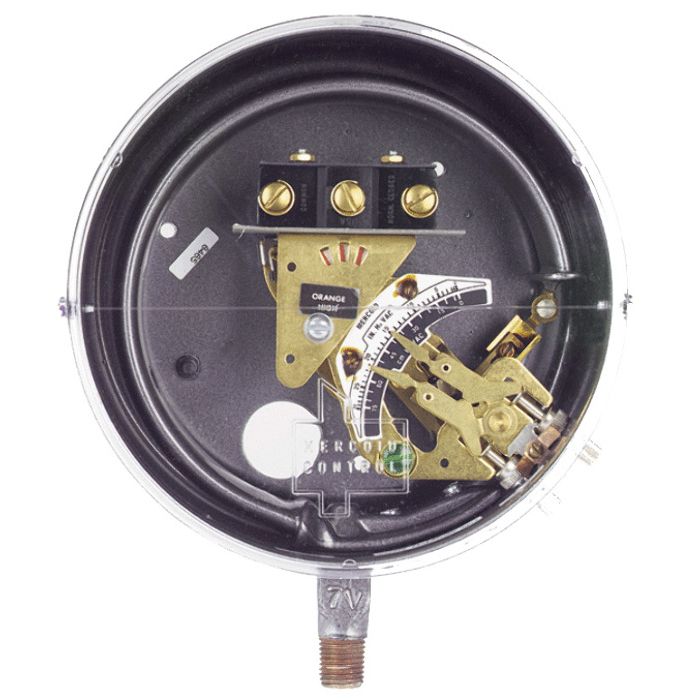

Dwyer DA-7031-153-6 Tube Pressure Switch

Product Description

The Dwyer DA-7031-153-6 Tube Pressure Switch serves crucial roles in HVAC systems. It features a brass Bourdon tube structure that operates within a pressure range of five to one hundred psig. This model includes a minimum deadband of nine psig. The switch is designed as a single pole double throw (SPDT) device with a snap switch mechanism.

• Adjustable or fixed deadband reduces equipment wear.
• Visible calibrated dial for easy monitoring.
• External switch setpoint adjustments for quick setup.

Product Highlights

This Tube Pressure Switch is UL listed and CSA approved, meeting rigorous safety standards. It is suitable for diverse applications, offering weatherproof or explosion-proof enclosures to accommodate various environments.

Product Information

Standard Information

• Brand: Dwyer
• Part Number: DA-7031-153-6
• Pressure Range: 5 to 100 psig
• Deadband: Minimum 9 psig
• Type: SPDT, Snap Switch

Technical Specifications

• Calibrated Dial: Visible for quick checks
• Pressure Capability: From full vacuum to 8000 psig
• Enclosure Types: General purpose, weatherproof, or explosion-proof
• Approval Ratings: UL listed, CSA approved
• Application Use: Suitable for indoor and outdoor environments
• Switch State Indication: Clear indication for operator safety
